NSN 4140-00-358-1751 DCPC-MS 201 CW 227AF, DCPCMS201227ASCW, DCPC-MS201-227AS-CW
Product Details | CENTRIFUGAL FAN
4140-00-358-1751 A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41400043Fans, Air Circulators, and Blower Equipment
Part Alternates: DCPC-MS 201 CW 227AF, DCPCMS201227ASCW, DCPC-MS201-227AS-CW, DCPCMS201CW227AA, DCPC-MS201CW-227AA, DCPCMS201CW227AF, DCPCTYPEMS201, GF802P3, 027471, 4140-00-358-1751, 00-358-1751, 4140003581751, 003581751
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 18 FEB 1974 | 00-358-1751 | 04254 ( FAN, CENTRIFUGAL ) |
Drawings & Photos | NSN 4140-00-358-1751
Cross Reference | NSN 4140-00-358-1751
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 027471 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| DCPC-MS 201 CW 227AF | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| DCPC-MS201-227AS-CW | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| DCPC-MS201CW-227AA | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| DCPCTYPEMS201 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| GF802P3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-358-1751
Technical Data | NSN 4140-00-358-1751
| Characteristic | Specifications |
|---|---|

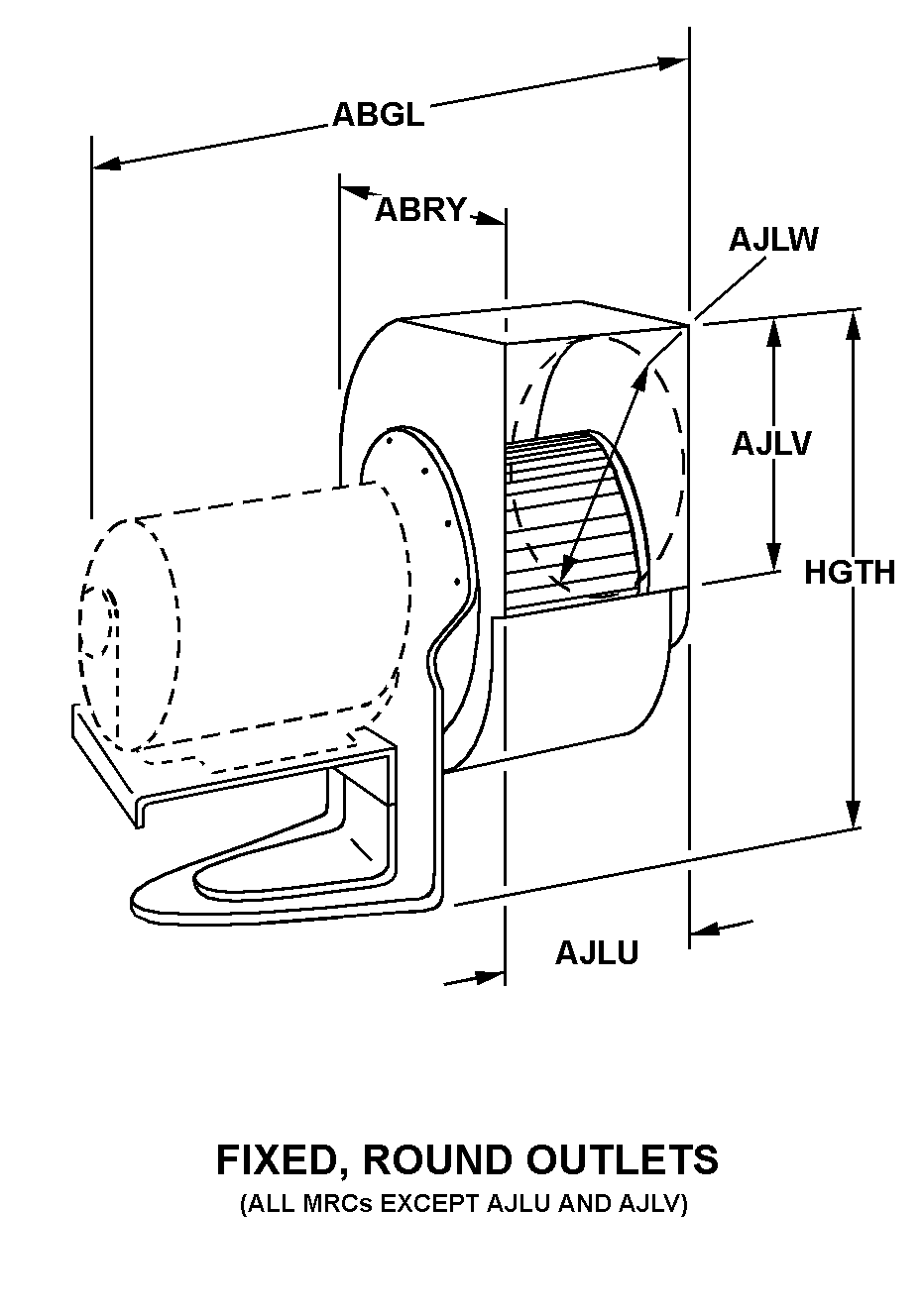

| STYLE DESIGNATOR | 50A FIXED, ROUND OUTLETS |
| WIDTH | 3.391 INCHES NOMINAL |
| DIAMETER | 2.000 INCHES NOMINAL |
| LENGTH | 3.937 INCHES NOMINAL |
| OUTLET INSIDE DIAMETER | 1.250 INCHES NOMINAL |
| HEIGHT | 3.812 INCHES NOMINAL |
| QUANTITY | 1 |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC BLADE ENAMEL HOUSING |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | -55.0 DEG CELSIUS AND 65.0 DEG CELSIUS |
| ELECTRICAL CONNECTION TYPE | TERMINAL BLOCK |
| PRIME MOVER POWER RATING | 0.012 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 4300.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| AIR FLOW RATE | 20.0 CUBIC FEET PER MINUTE MAXIMUM |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| ENVIRONMENTAL PROTECTION | WEATHERPROOF |
| STAGE QUANTITY | 1 |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP |
| OUTLET LOCATION | BOTTOM |
| DISCHARGE DIRECTION | VERTICAL DOWN |
| MANUFACTURERS CODE | 82877 |
| DESIGN CONTROL REFERENCE | 027471 |
Restrictions/Controls & Freight Information | NSN 4140-00-358-1751
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-358-1751
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
