NSN 4140-00-288-7657 A11A4, NBCK11F1, F40H3R6
Product Details | CIRCULATING FAN
4140-00-288-7657 A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface.
Part Alternates: A11A4, NBCK11F1, F40H3R6, F40H3R-6, 1015635, 260D, 4140-00-288-7657, 00-288-7657, 4140002887657, 002887657
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-288-7657 | 30260 ( FAN, CIRCULATING ) |
Drawings & Photos | NSN 4140-00-288-7657
Cross Reference | NSN 4140-00-288-7657
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1015635 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1015635 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 260D | 08719 | DUCOMMUN LABARGE TECHNOLOGIES, INC DBA AMERICAN ELECTRONICS |
| A11A4 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| F40H3R-6 | 19070 | EASTERN AIR DEVICES INC DBA EAD MOTORS |
| NBCK11F1 | 02598 | AEROFLEX LABORATORIES INC ROTATING COMPONENTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-288-7657
Technical Data | NSN 4140-00-288-7657
| Characteristic | Specifications |
|---|---|

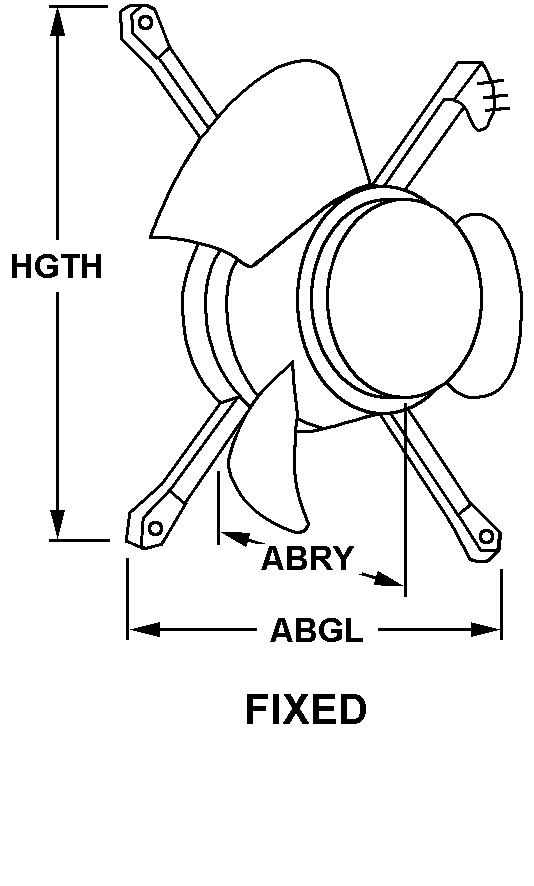

| STYLE DESIGNATOR | 44 FIXED |
| LENGTH | 3.875 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BLADE |
| SURFACE TREATMENT | ANODIZE BLADE |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | COUNTERCLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | 71.0 DEG CELSIUS |
| ELECTRICAL CONNECTION TYPE | CONNECTOR |
| PRIME MOVER POWER RATING | 0.070 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 10000.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 400.0 |
| AIR FLOW RATE | 250.0 CUBIC FEET PER MINUTE MAXIMUM |
| FLOW DIRECTION | INWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BRACKET AND 3 UNTHREADED HOLE |
| SPECIAL FEATURES | W/4.375 IN. DIA BY 2.0 IN. DEEP SHROUD,INTAKE FACE PERFORATED 1/4 IN. HOLES TO FORM SCREEN,SHIELDED 3 WIRE CABLE 24 IN. LG W/AN3106B-14S-1P CONNECTOR |
Restrictions/Controls & Freight Information | NSN 4140-00-288-7657
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 752 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-288-7657
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
