NSN 4140-00-277-3126 873333, 00-277-3126, 002773126
Product Details | CENTRIFUGAL FAN
4140-00-277-3126 A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41400043Fans, Air Circulators, and Blower Equipment
Part Alternates: 873333, 4140-00-277-3126, 00-277-3126, 4140002773126, 002773126
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-277-3126 | 04254 ( FAN, CENTRIFUGAL ) |
Drawings & Photos | NSN 4140-00-277-3126
Cross Reference | NSN 4140-00-277-3126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 873333 | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-277-3126
Technical Data | NSN 4140-00-277-3126
| Characteristic | Specifications |
|---|---|

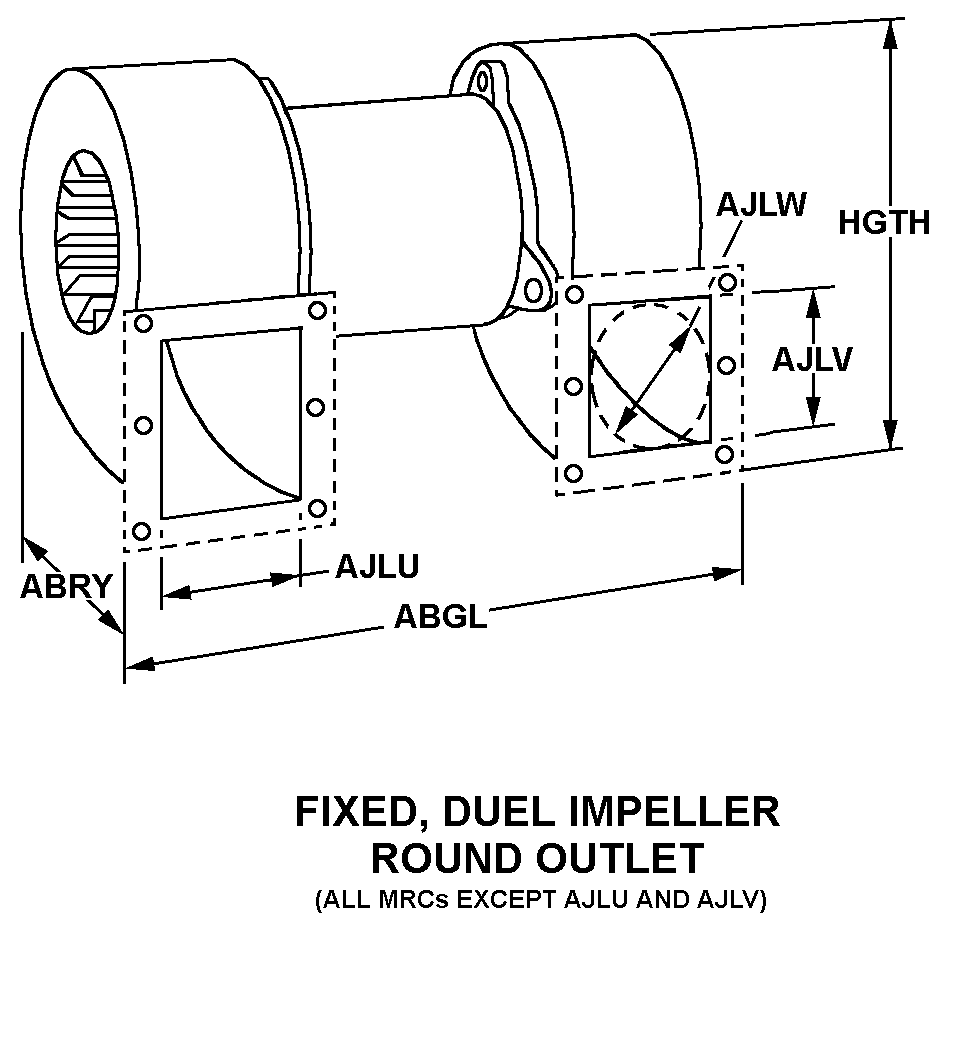

| STYLE DESIGNATOR | 52A FIXED, DUAL IMPELLER, ROUND OUTLET |
| WIDTH | 8.125 INCHES NOMINAL |
| LENGTH | 3.562 INCHES NOMINAL |
| OUTLET INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| HEIGHT | 3.875 INCHES NOMINAL |
| MATERIAL | STEEL BLADE PLASTIC HOUSING |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE AND COUNTERCLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | PARTIALLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | 40.0 DEG CELSIUS |
| PRIME MOVER POWER RATING | 0.010 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 3200.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 72.0 AC |
| PHASE | TWO |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 20.0 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 FLANGE AND 6 UNTHREADED HOLE |
| OUTLET LOCATION | BOTTOM |
| DISCHARGE DIRECTION | VERTICAL DOWN |
| MANUFACTURERS CODE | 06141 |
| DESIGN CONTROL REFERENCE | 873333 |
Restrictions/Controls & Freight Information | NSN 4140-00-277-3126
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-277-3126
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
