NSN 4130-01-540-2976 AFLT66, 01-540-2976, 015402976
Product Details | AIR CONDITIONING FILTER ELEMENT

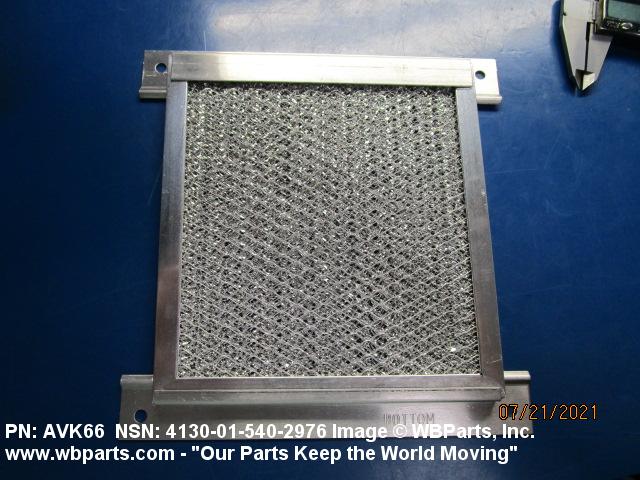

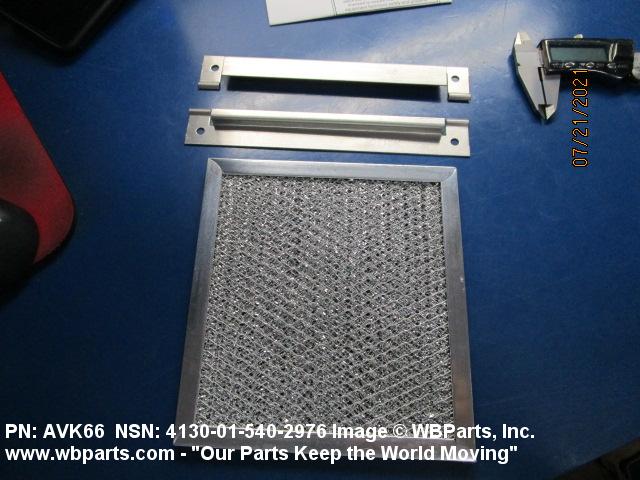

4130-01-540-2976 A replaceable device designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous fibrous or shredded material (metallic or nonmetallic) which is loosely woven or matted and confined in a frame or retained between perforated sheets of firmer material. It is designed to fit into air conditioners, ventilation systems and hot air furnaces. It may have facilities for radio frequency/electromagnetic interference shielding. The filter may be cleaned by the use of compressed air, blown through the filter element, or by using water and a suitable detergent for cleaning purposes which would extend the life of the filter.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41300045Refrigeration and Air Conditioning Components
Part Alternates: AFLT66, 4130-01-540-2976, 01-540-2976, 4130015402976, 015402976
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 15 MAY 2006 | 01-540-2976 | 06458 ( FILTER ELEMENT, AIR CONDITIONING ) |
Drawings & Photos | NSN 4130-01-540-2976
Demand History | NSN 4130-01-540-2976
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AFLT66 | 2024-04-108 | 133 | DIBBS |
| AFLT66 | 2023-10-291 | 71 | DIBBS |
| 4130-01-540-2976 | 2021-06-180 | 25 | United States |
| AFLT66 | 2021-06-168 | 74 | DIBBS |
| AFLT66 | 2020-03-75 | 65 | DIBBS |
| AFLT66 | 2019-06-170 | 34 | DIBBS |
| 4130-01-540-2976 | 2018-05-122 | 14 | DIBBS |
| 4130-01-540-2976 | 2014-02-33 | 2 | DIBBS |
| 4130-01-540-2976 | 2013-08-231 | 2 | DIBBS |
| 4130-01-540-2976 | 2010-03-88 | 10 | DIBBS |
| 4130-01-540-2976 | 2008-11-334 | 10 | DIBBS |
Cross Reference | NSN 4130-01-540-2976
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AFLT66 | 00843 | HOFFMAN ENGINEERING CO DIV OF FEDERAL CARTRIDGE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-01-540-2976
Technical Data | NSN 4130-01-540-2976
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 RECTANGULAR |

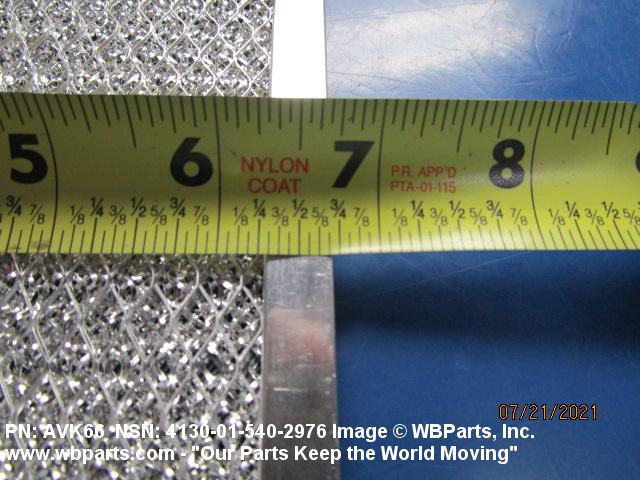

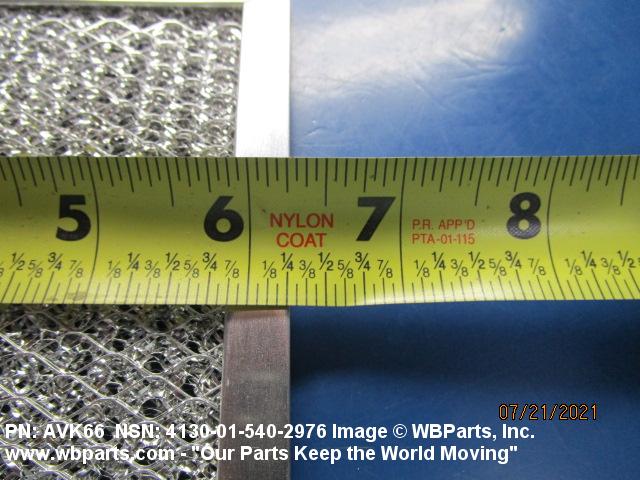

| OVERALL WIDTH | 6.720 INCHES NOMINAL |

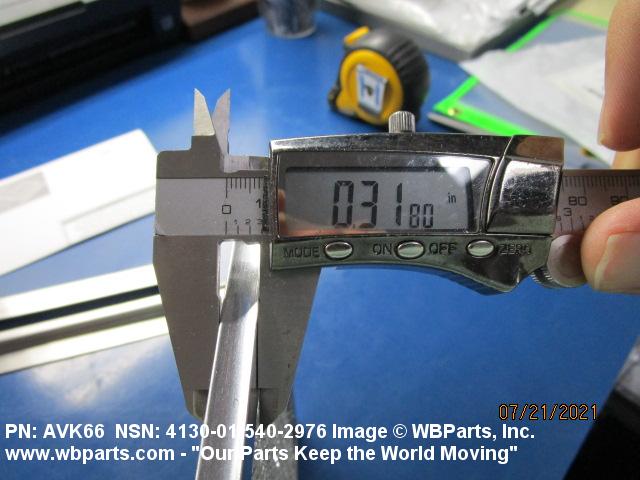

| BODY THICKNESS | 0.340 INCHES NOMINAL |
| BODY OVERALL LENGTH | 6.250 INCHES NOMINAL |
| MATERIAL | ALUMINUM FRAME |
| FILTERING MEDIA DESIGN | EXPANDED 2ND FILTERING MEDIA RESPONSE |
| DESIGN TYPE | REUSABLE |
Restrictions/Controls & Freight Information | NSN 4130-01-540-2976
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-01-540-2976
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
