NSN 4130-01-526-8703 E5030757, E503075-7, 01-526-8703
Product Details | AIR CONDITIONING FILTER ELEMENT
4130-01-526-8703 A replaceable device designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous fibrous or shredded material (metallic or nonmetallic) which is loosely woven or matted and confined in a frame or retained between perforated sheets of firmer material. It is designed to fit into air conditioners, ventilation systems and hot air furnaces. It may have facilities for radio frequency/electromagnetic interference shielding. The filter may be cleaned by the use of compressed air, blown through the filter element, or by using water and a suitable detergent for cleaning purposes which would extend the life of the filter.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41300045Refrigeration and Air Conditioning Components
Part Alternates: E5030757, E503075-7, 4130-01-526-8703, 01-526-8703, 4130015268703, 015268703
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 10 JAN 2005 | 01-526-8703 | 06458 ( FILTER ELEMENT, AIR CONDITIONING ) |
Drawings & Photos | NSN 4130-01-526-8703
Demand History | NSN 4130-01-526-8703
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| E503075-7 | 2024-04-94 | 72 | DIBBS |
| E503075-7 | 2023-10-291 | 50 | DIBBS |
| E503075-7 | 2022-08-222 | 41 | DIBBS |
| E503075-7 | 2022-07-187 | 2 | DIBBS |
| E5030757 | 2021-04-111 | 1 | United States |
Cross Reference | NSN 4130-01-526-8703
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E503075-7 | 76096 | ELMA ELECTRONIC INC. DBA (FOREIGN PARENT IS ELMA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-01-526-8703
Technical Data | NSN 4130-01-526-8703
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 RECTANGULAR |

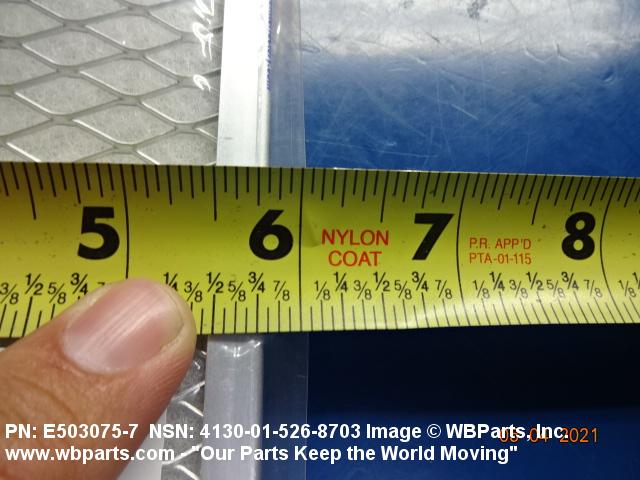

| OVERALL WIDTH | 5.846 INCHES NOMINAL |

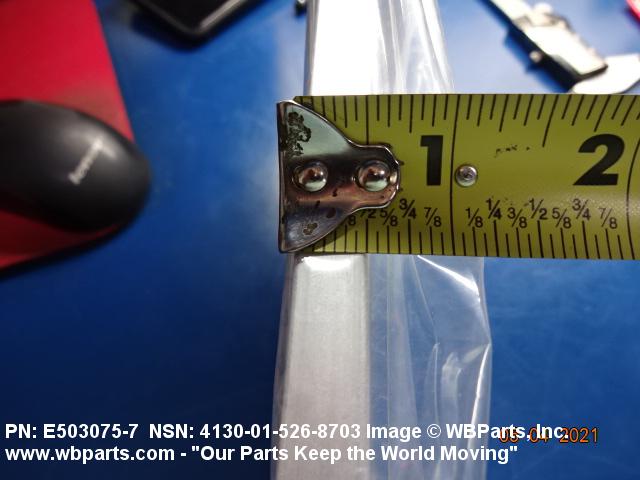

| BODY THICKNESS | 0.500 INCHES NOMINAL |

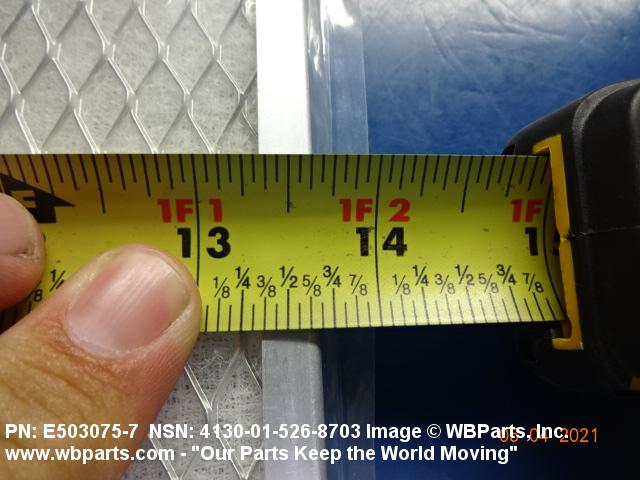

| BODY OVERALL LENGTH | 13.706 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY AND PLASTIC POLYETHYLENE BODY |
| FILTERING MEDIA DESIGN | SHREDDED SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | REUSABLE |
| FILTRATION RATING IN MICRONS | NOT RATED |
| MAXIMUM AIR FLOW RATE | NOT RATED |
| SPECIAL FEATURES | PLIOTRON TYPE HD PERMANENT SELF CHARGING ELECTROSTATIC FILTER |
Restrictions/Controls & Freight Information | NSN 4130-01-526-8703
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
