NSN 4130-01-524-9640 HF7124BGL, HF7-12-4BGL, 01-524-9640
Product Details | AIR CONDITIONING FILTER ELEMENT
4130-01-524-9640 A replaceable device designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous fibrous or shredded material (metallic or nonmetallic) which is loosely woven or matted and confined in a frame or retained between perforated sheets of firmer material. It is designed to fit into air conditioners, ventilation systems and hot air furnaces. It may have facilities for radio frequency/electromagnetic interference shielding. The filter may be cleaned by the use of compressed air, blown through the filter element, or by using water and a suitable detergent for cleaning purposes which would extend the life of the filter.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41300045Refrigeration and Air Conditioning Components
Part Alternates: HF7124BGL, HF7-12-4BGL, 4130-01-524-9640, 01-524-9640, 4130015249640, 015249640
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 22 OCT 2004 | 01-524-9640 | 06458 ( FILTER ELEMENT, AIR CONDITIONING ) |
Drawings & Photos | NSN 4130-01-524-9640
Cross Reference | NSN 4130-01-524-9640
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HF7-12-4BGL | 00819 | SPX CORPORATION DEHYDRATION DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-01-524-9640
Technical Data | NSN 4130-01-524-9640
| Characteristic | Specifications |
|---|---|

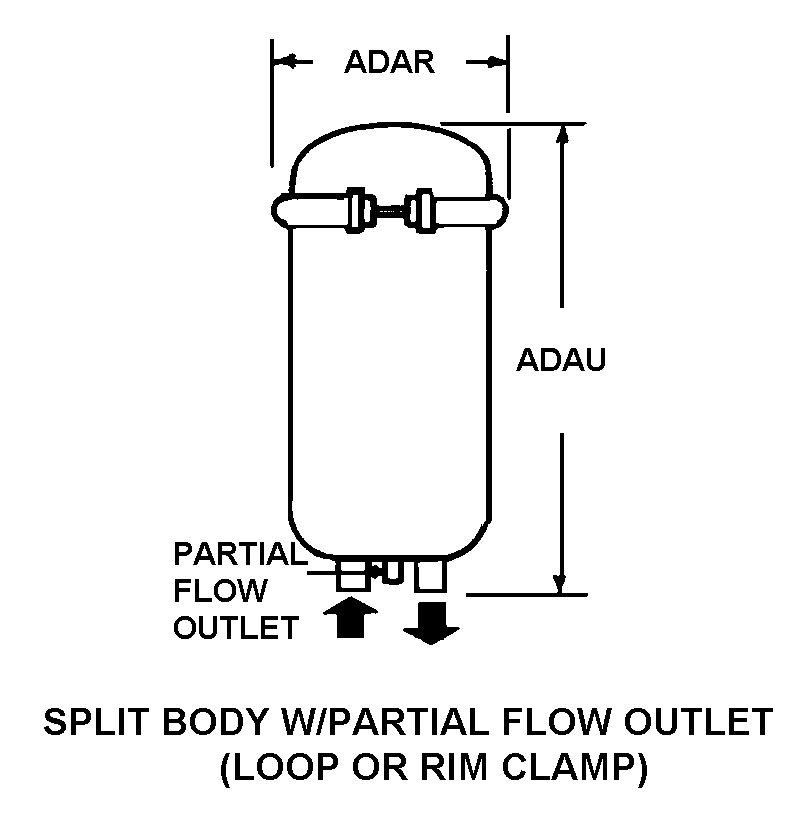

| STYLE DESIGNATOR | C47 SPLIT BODY W/PARTIAL FLOW OUTLET |
| BODY OUTSIDE DIAMETER | 4.130 INCHES NOMINAL |
| BODY HEIGHT | 8.150 INCHES NOMINAL |
| FEATURES PROVIDED | DIFFERENTIAL PRESSURE INDICATOR |
| SPECIAL FEATURES | 2 STAGE FILTRATION CAPTURES LARGER PARTICLES WITH ALTERNATE LAYERS OF FIBER MEDIA AND MEDIA SCREEN;SECOND STAAGE COALESCES AEROSOLS, CAPTURES SOLIDPARTICLE WITH MULTIPLE LAYERS OF EPOXYBONDED BLENDED FIBER MEDIA;CORROSION RESISTANT INNER AND OUTER CORES;REMAINING OIL CONTENT 1 PPMW/W;ISO 8573.1 QUALITY CLASS SOLIDS;CLASS 2 OIL CONTENT,CLASS 4;MAXIMUM INLET LIQUID LOAD 2000PPM/WW |
| III UNPACKAGED UNIT WEIGHT | 4.200 POUNDS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FILTER,AIRLINE |
Restrictions/Controls & Freight Information | NSN 4130-01-524-9640
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
