NSN 4130-01-424-4578 DN032, 01-424-4578, 014244578
Product Details | REFRIGERANT FILTER-DRIER
4130-01-424-4578 A device consisting of a metal cylinder filled or to be filled with a desiccant, placed in the liquid or suction line of a mechanical refrigeration system for the purpose of removing moisture and/or foreign matter. It may have an integral strainer.
Part Alternates: DN032, 4130-01-424-4578, 01-424-4578, 4130014244578, 014244578
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 29 JAN 1996 | 01-424-4578 | 36434 ( FILTER-DRIER, REFRIGERANT ) |
Drawings & Photos | NSN 4130-01-424-4578
Cross Reference | NSN 4130-01-424-4578
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DN032 | 24976 | DANFOSS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-01-424-4578
Technical Data | NSN 4130-01-424-4578
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | NONREFILLABLE |
| SHAPE | STRAIGHT |
| DESICCANT CAPACITY | NOT RATED |
| COMPRESSOR POWER RATING | NOT RATED |
| OVERALL LENGTH | 4.107 INCHES NOMINAL |
| END CONNECTION TYPE AND LOCATION | THREADED EXTERNAL TUBE FIRST END THREADED EXTERNAL TUBE SECOND END |
| CONNECTION SPECIAL DESIGN | UNION UNION |

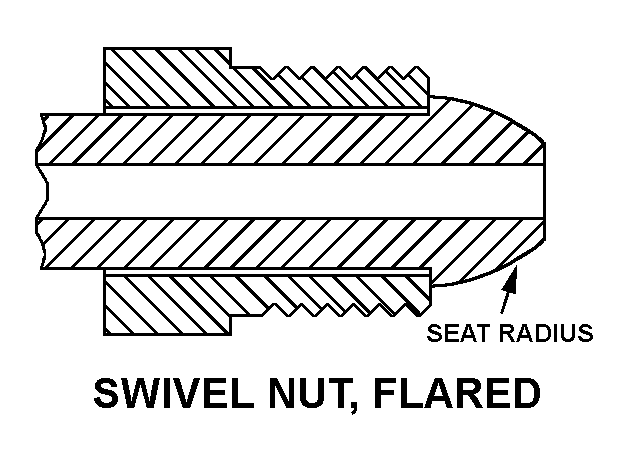

| STYLE DESIGNATOR | 50 SWIVEL NUT, FLARED |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 50 SWIVEL NUT, FLARED 0.219 INCHES NOMINAL |
| THREAD SIZE | 0.219 INCHES NOMINAL 1/4-20 |
| SCREW THREAD SERIES DESIGNATOR | 1/4-20 UNJF |
| THREAD CLASS | UNJF 3A |
| THREAD DIRECTION | 3A RIGHT-HAND |
| SEAT ANGLE | RIGHT-HAND |
| LEG LENGTH | 45.0 DEGREES |
| RESTRICTION PASSAGE INSIDE DIAMETER | 0.584 INCHES NOMINAL 0.086 INCHES NOMINAL |
| THE MANUFACTURERS DATA | 0.086 INCHES NOMINAL |
| MANUFACTURERS CODE | 24976 |
| DESIGN CONTROL REFERENCE | DN032 |
Restrictions/Controls & Freight Information | NSN 4130-01-424-4578
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4130-01-424-4578
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
