NSN 4130-01-394-4157 H-163, H163, 01-394-4157
Product Details | REFRIGERANT FILTER-DRIER
4130-01-394-4157 A device consisting of a metal cylinder filled or to be filled with a desiccant, placed in the liquid or suction line of a mechanical refrigeration system for the purpose of removing moisture and/or foreign matter. It may have an integral strainer.
Part Alternates: H-163, H163, 4130-01-394-4157, 01-394-4157, 4130013944157, 013944157
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 09 AUG 1994 | 01-394-4157 | 36434 ( FILTER-DRIER, REFRIGERANT ) |
Drawings & Photos | NSN 4130-01-394-4157
Demand History | NSN 4130-01-394-4157
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SDM-163 | 2024-01-11 | 35 | DIBBS |
| SDM-163 | 2023-11-319 | 1 | DIBBS |
| SDM-163 | 2022-07-198 | 15 | DIBBS |
| SDM-163 | 2021-06-173 | 6 | DIBBS |
| H163 | 2020-11-331 | 6 | DIBBS |
| H163 | 2013-12-343 | 2 | US |
| H163 | 2013-05-140 | 15 | India |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4130-01-394-4157
Related Products | NSN 4130-01-394-4157
Technical Data | NSN 4130-01-394-4157
| Characteristic | Specifications |
|---|---|
| DESICCANT TYPE | ANY ACCEPTABLE |
| UNIT TYPE | NONREFILLABLE |
| SHAPE | STRAIGHT |
| DESICCANT CAPACITY | 16.000 CUBIC INCHES |
| COMPRESSOR POWER RATING | NOT RATED |
| SHELL MATERIAL | STEEL |
| END CONNECTION TYPE AND LOCATION | THREADED EXTERNAL TUBE FIRST END THREADED EXTERNAL TUBE SECOND END |
| CONNECTION SPECIAL DESIGN | UNION |

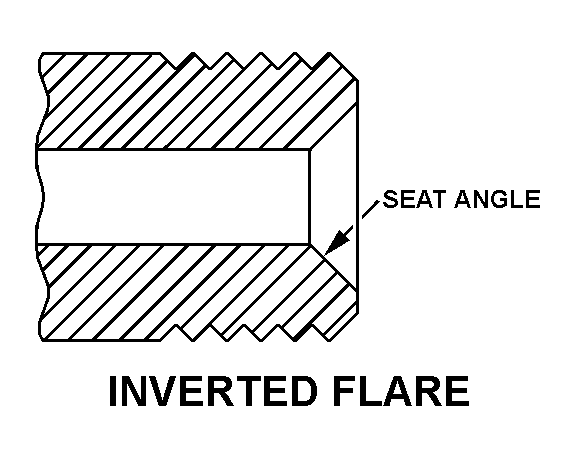

| STYLE DESIGNATOR | 36 INVERTED FLARE |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| THREAD SIZE | 5/8-18 |
| SCREW THREAD SERIES DESIGNATOR | SAE |
| SEAT ANGLE | 45.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4130-01-394-4157
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-01-394-4157
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
