NSN 4130-01-372-1334 H30017, H-30017, SP 142
Product Details | REFRIGERANT FILTER-DRIER
4130-01-372-1334 A device consisting of a metal cylinder filled or to be filled with a desiccant, placed in the liquid or suction line of a mechanical refrigeration system for the purpose of removing moisture and/or foreign matter. It may have an integral strainer.
Part Alternates: H30017, H-30017, SP 142, SP142, V8300-2-1/8, V8300218, 002594420 ITEM 28, 002594420/28, 00259442028, 002594420ITEM28, 226L61410M00, 226L61410-M00, 426L61000-M01 ITEM 28, 426L61000-M01/28, 426L61000M0128, 426L61000M01ITEM28, 90C021062, 90C02-1062, 90SM-125-0001 ITEM 14, 90SM1250001ITEM14, 4130-01-372-1334, 01-372-1334, 4130013721334, 013721334
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 03 MAR 1993 | 01-372-1334 | 36434 ( FILTER-DRIER, REFRIGERANT ) |
Drawings & Photos | NSN 4130-01-372-1334
Cross Reference | NSN 4130-01-372-1334
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 002594420 ITEM 28 | K2516 | MINISTRY OF DEFENCE NAVY SHIPS SUPPORT AGENCY |
| 002594420/28 | K2516 | MINISTRY OF DEFENCE NAVY SHIPS SUPPORT AGENCY |
| 226L61410-M00 | U2692 | JOHNSON CONTROLS LTD YORK NAVY SYSTE S |
| 426L61000-M01 ITEM 28 | U2692 | JOHNSON CONTROLS LTD YORK NAVY SYSTE S |
| 426L61000-M01/28 | U2692 | JOHNSON CONTROLS LTD YORK NAVY SYSTE S |
| 90C02-1062 | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| 90SM-125-0001 ITEM 14 | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| H-30017 | 28193 | HENRY TECHNOLOGIES INC. |
| SP 142 | K3070 | HENRY TECHNOLOGIES LIMITED |
| SP 142 | U0095 | PARTS CENTER |
| V8300-2-1/8 | 28193 | HENRY TECHNOLOGIES INC. |
| V8300-2-1/8 | K3070 | HENRY TECHNOLOGIES LIMITED |
| V8300-2-1/8 | U0095 | PARTS CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-01-372-1334
Technical Data | NSN 4130-01-372-1334
| Characteristic | Specifications |
|---|---|
| DESICCANT TYPE | ALUMINA, ACTIVATED AND MOLECULAR SIEVE |
| UNIT TYPE | REFILLABLE CARTRIDGE |
| CARTRIDGE QUANTITY | 3 |
| CARTRIDGE OVERALL DIAMETER | ANY ACCEPTABLE |
| CARTRIDGE LENGTH | 6.500 INCHES NOMINAL |
| SHAPE | ANGULAR |
| DISTANCE FROM OUTLET CENTERLINE TO INLET FACE | 24.062 INCHES NOMINAL |
| DESICCANT CAPACITY | 300.000 CUBIC INCHES |
| COMPRESSOR POWER RATING | NOT RATED |
| OVERALL LENGTH | 28.750 INCHES NOMINAL |
| SHELL MATERIAL | STEEL, CORROSION RESISTING |
| SHELL SURFACE TREATMENT | PAINTED |
| SHELL LENGTH | ANY ACCEPTABLE |
| SHELL DIAMETER | 6.000 INCHES NOMINAL |
| END CONNECTION TYPE AND LOCATION | UNTHREADED INTERNAL TUBE FIRST END UNTHREADED INTERNAL TUBE SECOND END |
| CONNECTION SPECIAL DESIGN | UNION |

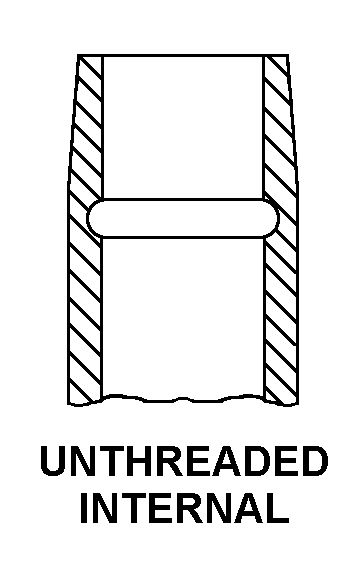

| STYLE DESIGNATOR | 28 UNTHREADED INTERNAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.125 INCHES NOMINAL |
| FEATURES PROVIDED | INTEGRAL STRAINER |
Restrictions/Controls & Freight Information | NSN 4130-01-372-1334
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-01-372-1334
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
