NSN 4130-01-327-5417 13075671019, 13075671-019, 01-327-5417
Product Details | AIR CONDITIONING FILTER ELEMENT
4130-01-327-5417 A replaceable device designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous fibrous or shredded material (metallic or nonmetallic) which is loosely woven or matted and confined in a frame or retained between perforated sheets of firmer material. It is designed to fit into air conditioners, ventilation systems and hot air furnaces. It may have facilities for radio frequency/electromagnetic interference shielding. The filter may be cleaned by the use of compressed air, blown through the filter element, or by using water and a suitable detergent for cleaning purposes which would extend the life of the filter.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41300045Refrigeration and Air Conditioning Components
Part Alternates: 13075671019, 13075671-019, 4130-01-327-5417, 01-327-5417, 4130013275417, 013275417
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
41 | 17 OCT 1990 | 01-327-5417 | 06458 ( FILTER ELEMENT, AIR CONDITIONING ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 4130-01-327-5417
Technical Data | NSN 4130-01-327-5417
Characteristic | Specifications |
---|---|

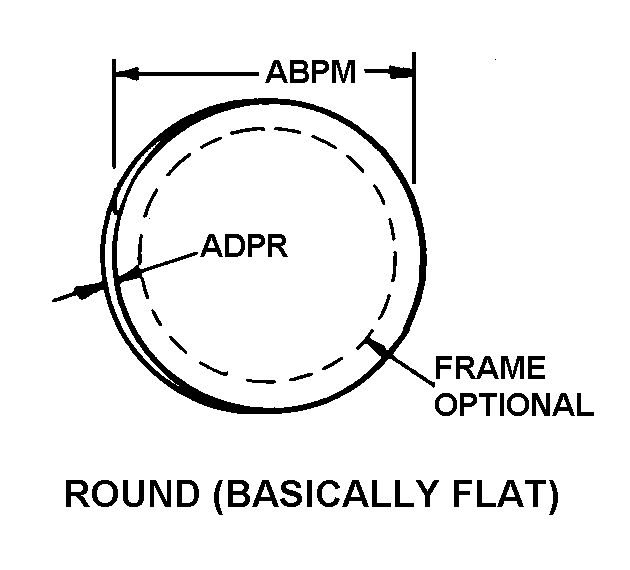

STYLE DESIGNATOR | A3 ROUND |
MATERIAL | STEEL CORROSION RESISTING BODY |
DESIGN TYPE | REUSABLE |
FILTRATION RATING IN MICRONS | 5.0 NOMINAL |
SPECIAL FEATURES | AIR FILTER ASSEMBLY-ENVIR. CONTROL UNIT,CONTAINS P/N 13084777 FILTER ELEMENT INTAKE AIR CLEANER. USED ON THE AN/ASQ-170 TARGET ACQUISITION DESIGNATION SIGHT (TADS) ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 4130-01-327-5417
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
Management | NSN 4130-01-327-5417
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
Specific Group/Generic Code | C | Other Aircraft Categories |
Weapons Systems/End Item or Homogeneous Group | CD | Target Acquisition Designation Sight (TADS) and Pilot Night Vision Sensor |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
Agency | DA | Department of the Army |
Service Organization | L | Lead Service - 22 (Repairable) |
Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
