NSN 4130-01-131-9529 DTG4AAF, DTG-4-AAF, 165322
Product Details | AIR CONDITIONING FILTERING ROLL
4130-01-131-9529 A replaceable device in roll form designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous, fibrous or shredded material (metallic or non-metallic) which is loosely woven or matted and mounted on a spool or hollow core roll. It is designed to fit into air conditioners, ventilation systems, hot air furnaces, and the like. When installed, itis drawn from one spool to another through an intake opening in a panel or the like.
Part Alternates: DTG4AAF, DTG-4-AAF, 165322, 16532-2, 811-947-002, 4130-01-131-9529, 01-131-9529, 4130011319529, 011319529, 800447000, 811947002
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 19 MAY 1982 | 01-131-9529 | 28539 ( FILTERING ROLL, AIR CONDITIONING ) |

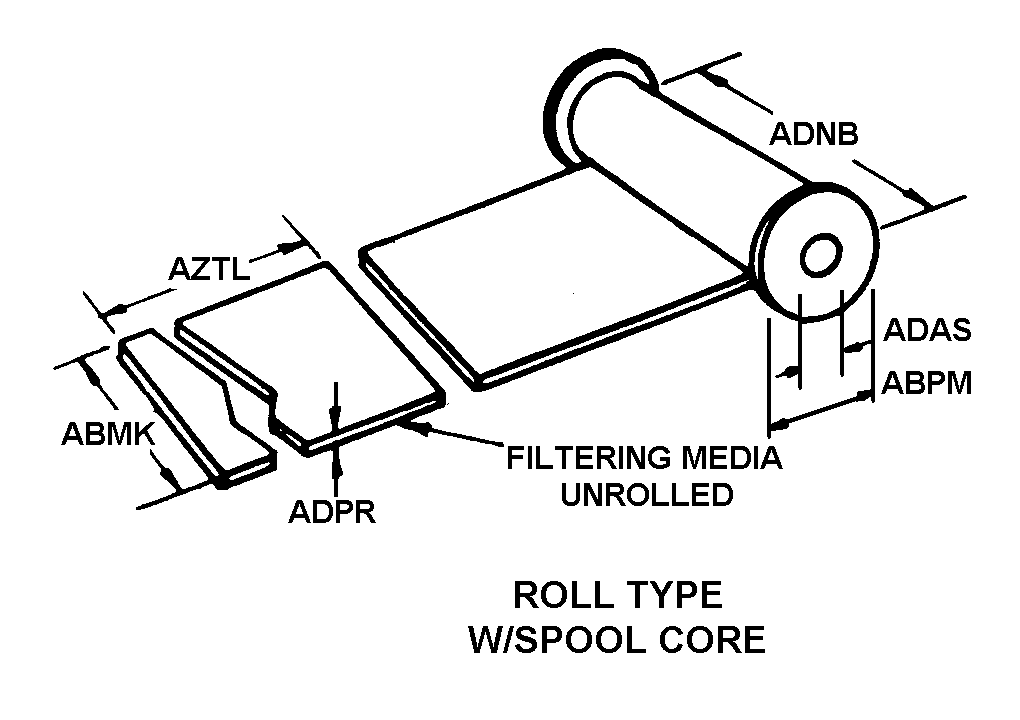

Drawings & Photos | NSN 4130-01-131-9529
Demand History | NSN 4130-01-131-9529
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 800447000 | 2024-09-254 | 15 | DIBBS |
| 870-447-300 | 2024-09-254 | 15 | DIBBS |
| 800447000 | 2024-07-211 | 15 | DIBBS |
| 870-447-300 | 2024-07-211 | 15 | DIBBS |
| 800447000 | 2022-08-216 | 20 | DIBBS |
| 800-447-100 | 2022-08-216 | 20 | DIBBS |
| 800447000 | 2019-12-359 | 16 | DIBBS |
| 800-447-100 | 2019-12-359 | 16 | DIBBS |
| 800447000 | 2019-06-155 | 16 | DIBBS |
| 800-447-100 | 2019-06-155 | 16 | DIBBS |
| 4130-01-131-9529 | 2018-12-347 | 16 | DIBBS |
| 4130-01-131-9529 | 2016-05-137 | 15 | DIBBS |
| 4130-01-131-9529 | 2012-05-135 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4130-01-131-9529
Related Products | NSN 4130-01-131-9529
Technical Data | NSN 4130-01-131-9529
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A23 ROLL TYPE W/SPOOL CORE |
| OVERALL WIDTH | 44.750 INCHES NOMINAL |
| BODY DIAMETER | ANY ACCEPTABLE |
| BODY INSIDE DIAMETER | 1.125 INCHES NOMINAL |
| SPOOL LENGTH | 47.875 INCHES NOMINAL |
| BODY THICKNESS | 2.000 INCHES NOMINAL |
| BODY OVERALL LENGTH | 780.000 INCHES NOMINAL |
| MATERIAL | GLASS FIBER FILTERING MEDIUM |
| FILTERING MEDIA DESIGN | ROLL TYPE SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | NONREUSABLE |
| FILTRATION RATING IN MICRONS | NOT RATED |
| MAXIMUM AIR FLOW RATE | NOT RATED |
| FACE VELOCITY | 500.0 FEET PER MINUTE |
| MANUFACTURERS CODE | 01767 |
| DESIGN CONTROL REFERENCE | 800447000 |
Restrictions/Controls & Freight Information | NSN 4130-01-131-9529
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:FILTERS,NOI SUB6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-01-131-9529
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
