NSN 4130-01-124-2621 NHSH5, NHSH-5, C30029
Product Details | REFRIGERANT HEAT INTERCHANGER
4130-01-124-2621 An apparatus designed to lower the temperature of the liquid refrigerant and raise the temperature of the suction vapor by permitting the transfer of heat from both through the walls of the separating chambers.
Part Alternates: NHSH5, NHSH-5, C30029, HE 8058-28.75 , HE80582875, 230721NHSH5, 23072-1-NHSH-5, 4130-01-124-2621, 01-124-2621, 4130011242621, 011242621
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 29 DEC 1981 | 01-124-2621 | 12791 ( HEAT INTERCHANGER, REFRIGERANT ) |

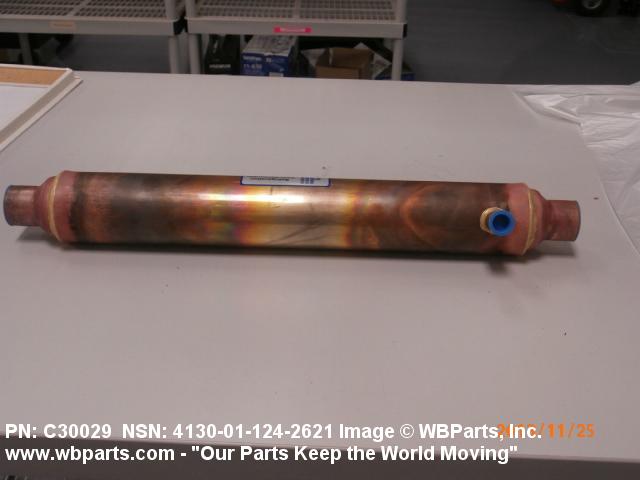

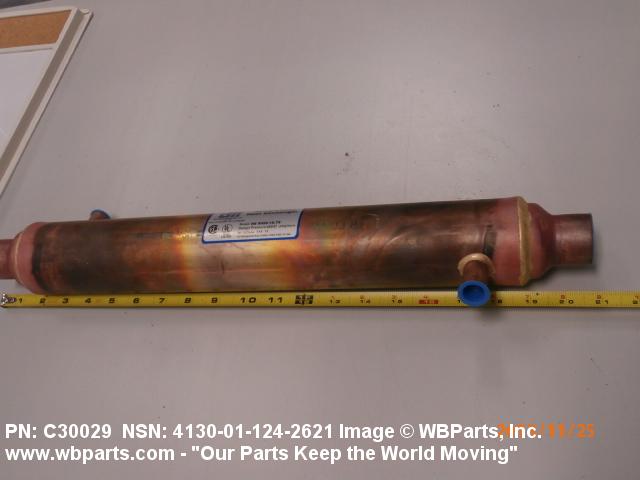

Drawings & Photos | NSN 4130-01-124-2621
Demand History | NSN 4130-01-124-2621
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C30119 | 2022-11-326 | 1 | DIBBS |
| HE 8058-28.75 | 2022-11-326 | 1 | DIBBS |
| C30119 | 2022-03-74 | 1 | DIBBS |
| HE 8058-28.75 | 2022-03-74 | 1 | DIBBS |
| C30119 | 2022-03-62 | 1 | DIBBS |
| HE 8058-28.75 | 2022-03-62 | 1 | DIBBS |
| C30119 | 2020-09-260 | 1 | DIBBS |
| HE 8058-28.75 | 2020-09-260 | 1 | DIBBS |
| 4130-01-124-2621 | 2017-12-359 | 1 | DIBBS |
| 4130-01-124-2621 | 2016-01-10 | 1 | DIBBS |
| 4130-01-124-2621 | 2014-11-317 | 1 | DIBBS |
| 4130-01-124-2621 | 2013-10-304 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-01-124-2621
Technical Data | NSN 4130-01-124-2621
| Characteristic | Specifications |
|---|---|
| TUBE MATERIAL | COPPER |
| TUBE FIN | NOT PROVIDED |
| SHELL MATERIAL | COPPER |
| SHELL OUTSIDE DIAMETER | 2.625 INCHES |
| OVERALL LENGTH | 32.500 INCHES NOMINAL |
| SPECIAL FEATURES | APPROVED FOR SHIPBOARD USE |
| MANUFACTURERS CODE | 59227 |
| DESIGN CONTROL REFERENCE | C30029 |
Restrictions/Controls & Freight Information | NSN 4130-01-124-2621
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-01-124-2621
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
