NSN 4130-00-964-9158 P-580, X1314, P580
Product Details | LIQUID REFRIGERANT RECEIVER
4130-00-964-9158 An item used on the high pressure side of a refrigerant compressor as a reservoir for the liquid refrigerant and provides a positive seal to prevent the escape of uncondensed gases to the expansion values. Excludes ACCUMULATOR, REFRIGERANT.
Part Alternates: P-580, X1314, P580, 4130-00-964-9158, 00-964-9158, 4130009649158, 009649158
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1962 | 00-964-9158 | 15767 ( RECEIVER, LIQUID REFRIGERANT ) |

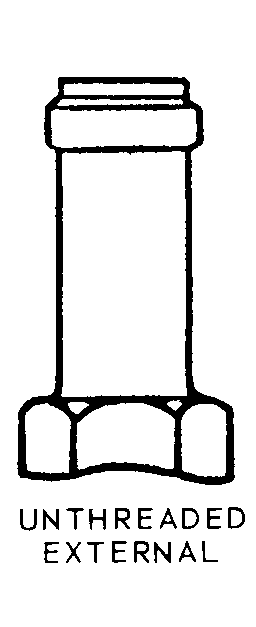

Drawings & Photos | NSN 4130-00-964-9158
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4130-00-964-9158
Related Products | NSN 4130-00-964-9158
Technical Data | NSN 4130-00-964-9158
| Characteristic | Specifications |
|---|---|
| MOUNTING POSITION | HORIZONTAL |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 22 |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| SHELL OUTSIDE DIAMETER | 2.500 INCHES |
| MATERIAL | STEEL |
| END CONNECTION TYPE AND LOCATION | UNTHREADED EXTERNAL TUBE FIRST END |
| STYLE DESIGNATOR | A55 UNTHREADED EXTERNAL |
| OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| SHUTOFF VALVE | NOT PROVIDED |
| EQUALIZING CONNECTION FEATURE | NOT INCLUDED |
| DRAIN CONNECTION | NOT INCLUDED |
| SAFETY PLUG | INCLUDED |
| LIQUID LEVEL INDICATOR | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4130-00-964-9158
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 123230 | ACCUMULATOR/DISTILLER GAS/LIQUID |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-00-964-9158
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
