NSN 4130-00-715-7712 D84971142, D8497-114-2 , FD686
Product Details | REFRIGERANT FILTER-DRIER
4130-00-715-7712 A device consisting of a metal cylinder filled or to be filled with a desiccant, placed in the liquid or suction line of a mechanical refrigeration system for the purpose of removing moisture and/or foreign matter. It may have an integral strainer.
Part Alternates: D84971142, D8497-114-2 , FD686, 26740, 4130-00-715-7712, 00-715-7712, 4130007157712, 007157712
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 23 APR 1998 | 00-715-7712 | 36434 ( FILTER-DRIER, REFRIGERANT ) |
Drawings & Photos | NSN 4130-00-715-7712
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-00-715-7712
Technical Data | NSN 4130-00-715-7712
| Characteristic | Specifications |
|---|---|
| DESICCANT TYPE | ANY ACCEPTABLE |
| UNIT TYPE | NONREFILLABLE |
| SHAPE | STRAIGHT |
| DESICCANT CAPACITY | NOT RATED |
| COMPRESSOR POWER RATING | NOT RATED |
| OVERALL LENGTH | 7.250 INCHES MINIMUM AND 7.500 INCHES MAXIMUM |
| SHELL MATERIAL | STEEL |
| SHELL LENGTH | ANY ACCEPTABLE |
| SHELL DIAMETER | 2.250 INCHES MINIMUM AND 2.275 INCHES MAXIMUM |
| END CONNECTION TYPE AND LOCATION | THREADED EXTERNAL TUBE FIRST END |
| CONNECTION SPECIAL DESIGN | UNION |

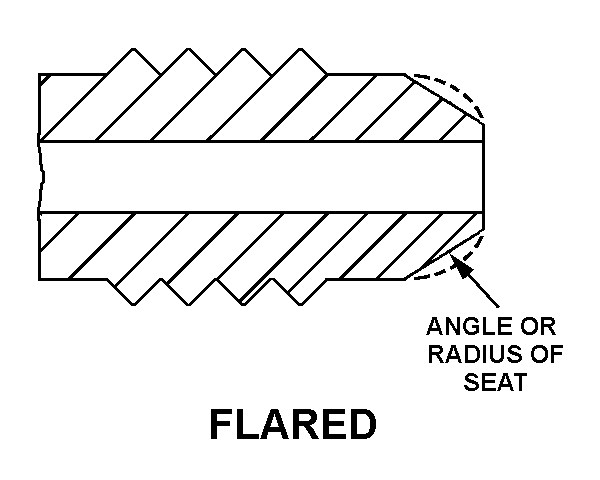

| STYLE DESIGNATOR | 42 FLARED |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.625 INCHES NOMINAL |
| THREAD SIZE | 7/8-14 |
| SCREW THREAD SERIES DESIGNATOR | SAE |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT ANGLE | 45.0 DEGREES |
| SPECIAL FEATURES | 63 MICROINCH SURFACE FINISH ON OD OF CONNECTION ENDS; INLET OR DIRECTION OF FLOW MUSTBE MARKED |
| MANUFACTURERS CODE | 01359 |
| DESIGN CONTROL REFERENCE | 26740 |
Restrictions/Controls & Freight Information | NSN 4130-00-715-7712
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
