NSN 4130-00-595-2539 2B516X, 00-595-2539, 005952539
Product Details | REFRIGERATION COMPRESSOR
4130-00-595-2539 A centrifugal, reciprocating, or rotary compressor designed to compress refrigerant gas(es) from an initial intake pressure to a final discharge pressure. It is designed to be driven by an independent power source, such as an electric motor, gasoline or diesel engine, or the like. It does not include the prime mover, condenser(s), external filter-drivers, and the like. It may include various peripheral components such as drive pulley, flexible coupling, and the like.
Part Alternates: 2B516X, 4130-00-595-2539, 00-595-2539, 4130005952539, 005952539
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-595-2539 | 29304 ( COMPRESSOR, REFRIGERATION ) |
Drawings & Photos | NSN 4130-00-595-2539
Cross Reference | NSN 4130-00-595-2539
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2B516X | 60532 | TRANE U.S. INC. DBA TRANE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-00-595-2539
Technical Data | NSN 4130-00-595-2539
| Characteristic | Specifications |
|---|---|
| GAS FOR WHICH DESIGNED | REFRIGERANT R-12 |
| COOLING SYSTEM DESIGN | SINGLE |
| COMPRESSED GAS COOLING MEDIUM | AIR |
| COMPRESSOR COOLING MEDIUM | AIR |
| UNLOADER TYPE | AUTOMATIC |
| RECIPROCATING COMPRESSOR DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 6 |

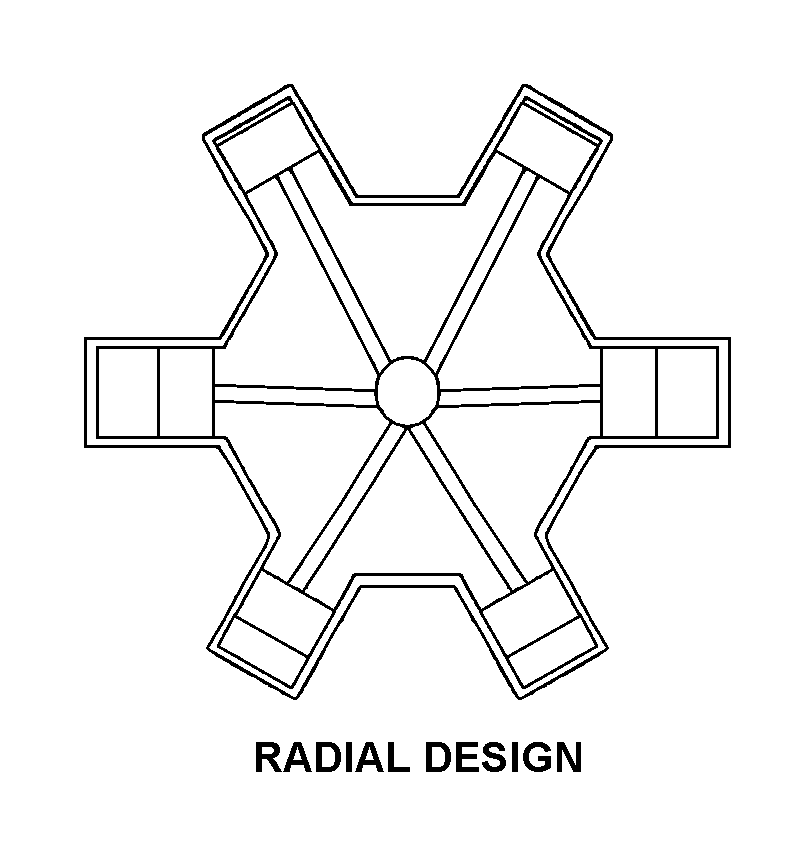

| CYLINDER ARRANGEMENT STYLE | 7 RADIAL DESIGN |
| ROTARY COMPRESSOR DESIGN | SLIDING VANE |
| STAGE QUANTITY | 1 |
| REFRIGERATION FLOW RATE IN TONS PER HOUR | 14.2 |
| SUCTION PRESSURE | 28.5 POUNDS PER SQUARE INCH |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | ROUND FLANGE |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | ROUND FLANGE |
| DRIVE CONNECTION TYPE | FLAT BELT |
| III FSC APPLICATION DATA | AIR CONDITIONER UNIT |
| MANUFACTURERS CODE | 60532 |
| DESIGN CONTROL REFERENCE | 2B516X |
Restrictions/Controls & Freight Information | NSN 4130-00-595-2539
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
