Product Details | REFRIGERANT FILTER-DRIER

4130-00-573-7482 A device consisting of a metal cylinder filled or to be filled with a desiccant, placed in the liquid or suction line of a mechanical refrigeration system for the purpose of removing moisture and/or foreign matter. It may have an integral strainer.

Part Alternates: A16571, A-16571, ADKS9611, ADKS-9611, C9611T, C-9611-T, H9611, H-9611, SD9611, STAS9611T, STAS-9611T, V8096-1 3-8IN, V8096-1-3/8, V8096138, V8096138IN, VS9611, P9611, 4130-00-573-7482, 00-573-7482, 4130005737482, 005737482

Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components

Supply Group (FSG) NSN Assign. NIIN
41 08 DEC 1974 00-573-7482

Drawings & Photos | NSN 4130-00-573-7482


Demand History | NSN 4130-00-573-7482

Part Number Request Date QTY Origin
4130-00-573-7482 2017-11-334 17 DIBBS
4130-00-573-7482 2017-09-255 4 DIBBS
4130-00-573-7482 2017-08-243 4 DIBBS
4130-00-573-7482 2017-07-186 1 DIBBS
4130-00-573-7482 2017-03-69 2 DIBBS
4130-00-573-7482 2017-02-58 2 DIBBS
4130-00-573-7482 2016-11-313 4 DIBBS
4130-00-573-7482 2015-03-69 2 DIBBS
4130-00-573-7482 2012-11-325 14 US

Cross Reference | NSN 4130-00-573-7482

Part Number Cage Code Manufacturer
A-16571 41947 MUELLER BRASS
ADKS-9611 70255 EMERSON ELECTRIC CO ALCO CONTROLS DIV
C-9611-T 78462 SPORLAN VALVE CO
H-9611 28193 HENRY TECHNOLOGIES INC.
P9611 30756 PARKER-HANNIFIN CORPORATION DBA MOBILE CLIMATE SYSTEMS DIVISION
P9611 45681 PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
SD9611 41947 MUELLER BRASS
STAS-9611T 70255 EMERSON ELECTRIC CO ALCO CONTROLS DIV
V8096-1 3-8IN 28193 HENRY TECHNOLOGIES INC.
V8096-1-3/8 28193 HENRY TECHNOLOGIES INC.
VS9611 58727 VIRGINIA CHEMICALS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4130-00-573-7482

Technical Data | NSN 4130-00-573-7482

Characteristic Specifications
DESICCANT TYPE ACTIVATED CHARCOAL OR FELT
UNIT TYPE REFILLABLE CARTRIDGE
CARTRIDGE QUANTITY 2
CARTRIDGE OVERALL DIAMETER 3.740 INCHES NOMINAL
CARTRIDGE LENGTH 5.500 INCHES NOMINAL
SHAPE ANGULAR
DISTANCE FROM OUTLET CENTERLINE TO INLET FACE 11.880 INCHES NOMINAL
DESICCANT CAPACITY 96.000 CUBIC INCHES
COMPRESSOR POWER RATING NOT RATED
OVERALL LENGTH 15.190 INCHES NOMINAL
SHELL MATERIAL STEEL, CORROSION RESISTING
SHELL SURFACE TREATMENT PAINTED
SHELL LENGTH ANY ACCEPTABLE
SHELL DIAMETER 4.750 INCHES NOMINAL
END CONNECTION TYPE AND LOCATION UNTHREADED INTERNAL TUBE FIRST END UNTHREADED INTERNAL TUBE SECOND END
CONNECTION SPECIAL DESIGN UNION

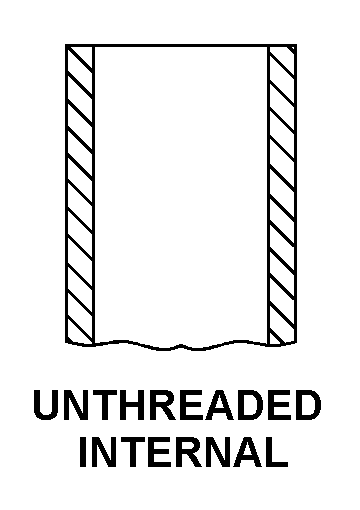

STYLE DESIGNATOR 27 UNTHREADED INTERNAL
TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED 1.375 INCHES NOMINAL
LEG LENGTH 1.000 INCHES NOMINAL
SPECIAL FEATURES DESINGED FOR SUCTION LINE APPLICATION; ACCESS VALVE ON INLET END

Restrictions/Controls & Freight Information | NSN 4130-00-573-7482

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 069100 FILTERS:FILTERS,NOI SUB6
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 72E unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4130-00-573-7482

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeTGTG:AF SICA RESIDUAL MMAC-WR-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
