NSN 4130-00-497-2185 3413, 00-497-2185, 004972185
Product Details | LIQUID REFRIGERANT RECEIVER
4130-00-497-2185 An item used on the high pressure side of a refrigerant compressor as a reservoir for the liquid refrigerant and provides a positive seal to prevent the escape of uncondensed gases to the expansion values. Excludes ACCUMULATOR, REFRIGERANT.
Part Alternates: 3413, 4130-00-497-2185, 00-497-2185, 4130004972185, 004972185
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 05 FEB 1971 | 00-497-2185 | 15767 ( RECEIVER, LIQUID REFRIGERANT ) |
Drawings & Photos | NSN 4130-00-497-2185
Demand History | NSN 4130-00-497-2185
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3413 | 2023-09-249 | 16 | DIBBS |
| 3413 | 2023-08-222 | 1 | DIBBS |
Cross Reference | NSN 4130-00-497-2185
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3413 | 97765 | REFRIGERATION RESEARCH INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4130-00-497-2185
Related Products | NSN 4130-00-497-2185
Technical Data | NSN 4130-00-497-2185
| Characteristic | Specifications |
|---|---|
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| MEDIA FOR WHICH DESIGNED | FREON 12 OR FREON 22 |
| REFRIGERANT CAPACITY | 17.6 POUNDS |
| MINIMUM CAPACITY | 20.0 CUBIC INCHES |
| REFRIGERANT TEMP AT MINIMUM CAPACITY IN DEG FAHRENHEIT | 90.0 |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| SHELL OUTSIDE DIAMETER | 6.000 INCHES |
| MATERIAL | STEEL |
| END CONNECTION TYPE AND LOCATION | THREADED EXTERNAL TUBE FIRST END THREADED EXTERNAL TUBE SECOND END |
| CONNECTION SPECIAL DESIGN | UNION |

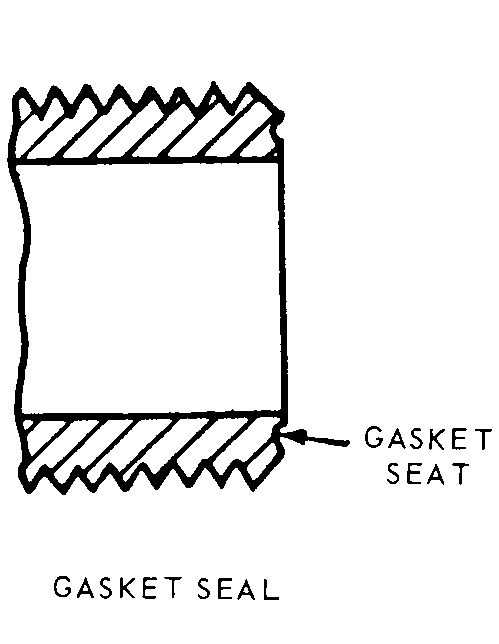

| STYLE DESIGNATOR | A49 GASKET SEAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | ANY ACCEPTABLE |
| THREAD SIZE | 1 IN.-14 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD CLASS | ANY ACCEPTABLE |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT ANGLE IN DEG | ANY ACCEPTABLE |
| LEG LENGTH | ANY ACCEPTABLE |
| RESTRICTION PASSAGE INSIDE DIAMETER | ANY ACCEPTABLE |
| SHUTOFF VALVE | NOT PROVIDED |
| EQUALIZING CONNECTION FEATURE | NOT INCLUDED |
| DRAIN CONNECTION | NOT INCLUDED |
| SAFETY PLUG | INCLUDED |
| LIQUID LEVEL INDICATOR | NOT INCLUDED |
| MANUFACTURERS CODE | 97765 |
| DESIGN CONTROL REFERENCE | 3413 |
Restrictions/Controls & Freight Information | NSN 4130-00-497-2185
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-00-497-2185
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
