NSN 4130-00-374-3206 CLC1S5901H949844REVBPC13, S59013113100PC70, S5901-3113100PC70
Product Details | CYLINDER SLEEVE
4130-00-374-3206 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: CLC1S5901H949844REVBPC13, S59013113100PC70, S5901-3113100PC70, S5901H1297870ITEM13, S5901H3113100REVBPC70, P300455MF, 06425141, 064-25141, 06425141D, 064-25141D, 294184PM, 29-4184PM, 484036PC70, 484107, 491220PC13, 499797ITEM13, 6425141M, 64-25141M, 4130-00-374-3206, 00-374-3206, 4130003743206, 003743206
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-374-3206 | 16756 ( CYLINDER SLEEVE ) |
Drawings & Photos | NSN 4130-00-374-3206
Cross Reference | NSN 4130-00-374-3206
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 064-25141 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 064-25141D | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 29-4184PM | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 484036PC70 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 484107 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 491220PC13 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 499797ITEM13 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 64-25141M | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| CLC1S5901H949844REVBPC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| P300455MF | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| S5901-3113100PC70 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| S5901H1297870ITEM13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| S5901H3113100REVBPC70 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4130-00-374-3206
Related Products | NSN 4130-00-374-3206
Technical Data | NSN 4130-00-374-3206
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON, CAST, NICKEL |
| METALLIC HARDNESS RATING | NOT RATED |
| DESIGN TYPE | DRY |

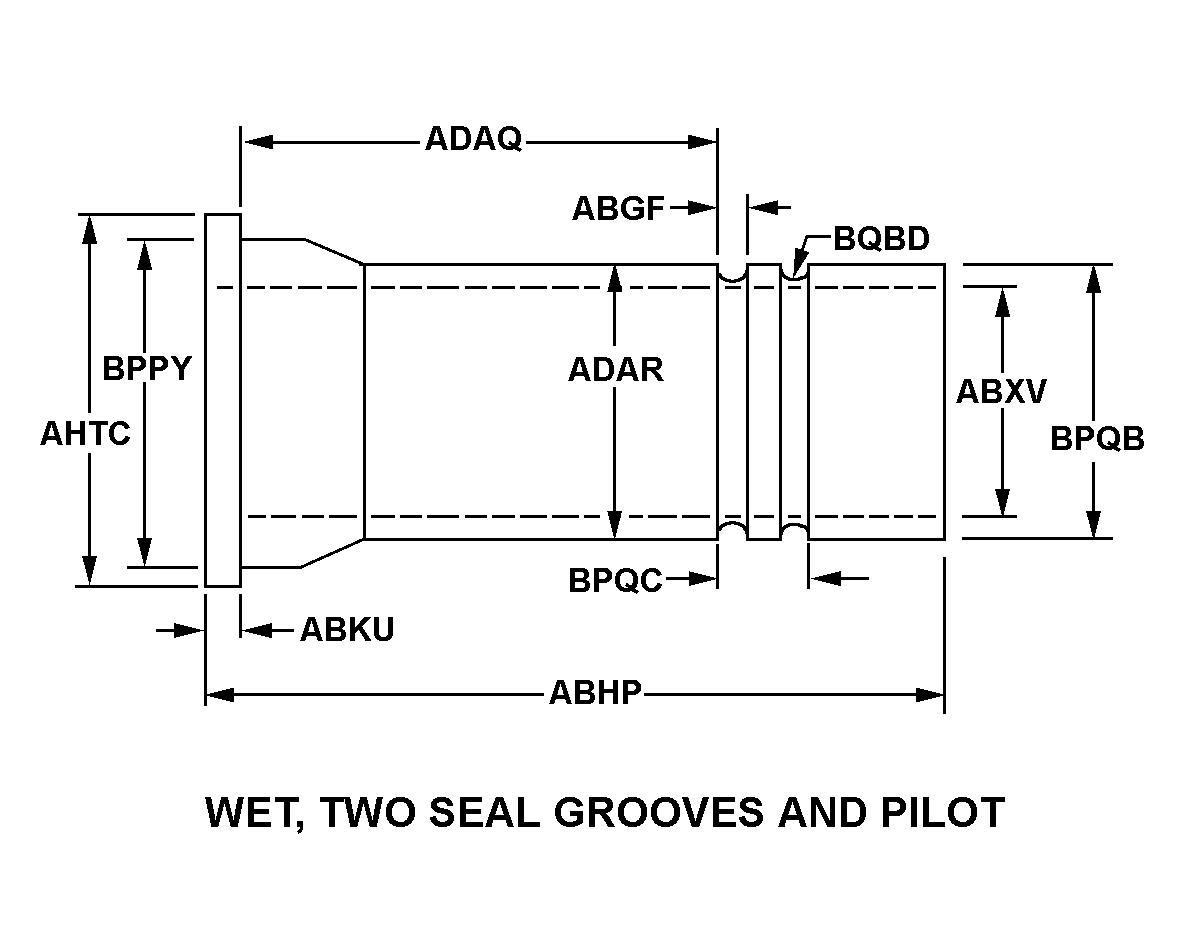

| STYLE DESIGNATOR | A4 WET, TWO SEAL GROOVES AND PILOT |
