Product Details | PISTON RING

4130-00-318-2175 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps

Part Alternates: AU50CP260, 4130-00-318-2175, 00-318-2175, 4130003182175, 003182175

Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components

Supply Group (FSG) NSN Assign. NIIN
41 01 JAN 1963 00-318-2175

Drawings & Photos | NSN 4130-00-318-2175


Cross Reference | NSN 4130-00-318-2175

Part Number Cage Code Manufacturer
AU50CP260 10855 CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4130-00-318-2175

Technical Data | NSN 4130-00-318-2175

Characteristic Specifications
MATERIAL IRON OVERALL

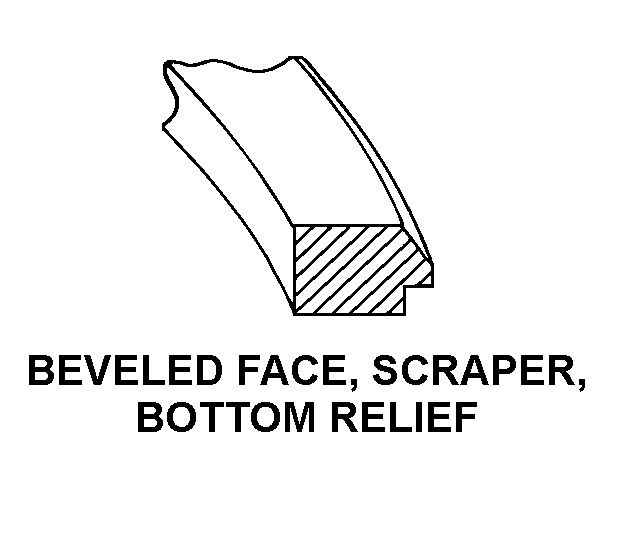

CROSS-SECTIONAL SHAPE STYLE A26 BEVELED FACE, SCRAPER, BOTTOM RELIEF
JOINT STYLE 1 VERTICAL JOINT
RING STYLE 1 CONCENTRIC
RADIAL WALL THICKNESS 0.0620 INCHES MINIMUM AND 0.0930 INCHES MAXIMUM
OVERALL WIDTH 0.1250 INCHES NOMINAL
STANDARD BORE DIAMETER 1.843 INCHES
MANUFACTURERS CODE 10855
DESIGN CONTROL REFERENCE AU50CP260

Restrictions/Controls & Freight Information | NSN 4130-00-318-2175

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 126700 PISTON RINGS,IRON
Less than car load rating M 85
Less than truck load rating M 85.0
Water commodity Code 72E unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Y Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4130-00-318-2175

Category Code Description
Cognizance Codes9GNavy-owned stocks of defense general material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9GDefense Supply Center Richmond
Richmond, VA 23297
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
