NSN 4130-00-244-2226 RNG1584, RNG-1584, 025-0002-00
Product Details | PISTON RING
4130-00-244-2226 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: RNG1584, RNG-1584, 025-0002-00, 4R48024, 4R48-024, 4130-00-244-2226, 00-244-2226, 4130002442226, 025000200, 002442226
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 12 MAR 1971 | 00-244-2226 | 11459 ( RING, PISTON ) |
Drawings & Photos | NSN 4130-00-244-2226
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-00-244-2226
Technical Data | NSN 4130-00-244-2226
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

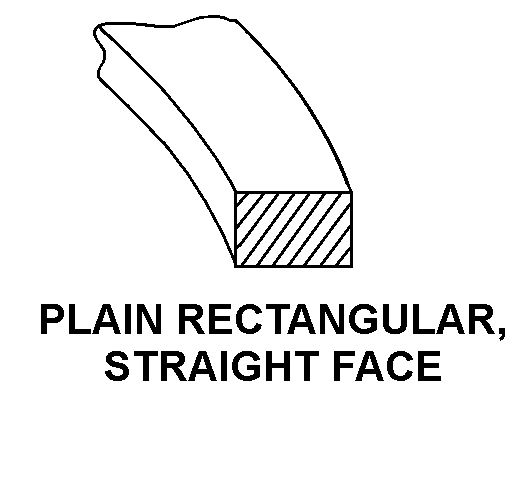

| CROSS-SECTIONAL SHAPE STYLE | A1 PLAIN RECTANGULAR, STRAIGHT FACE |

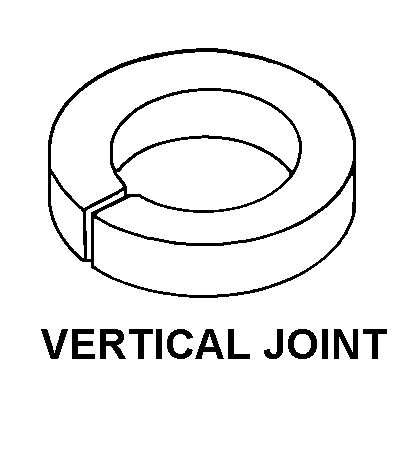

| JOINT STYLE | 1 VERTICAL JOINT |

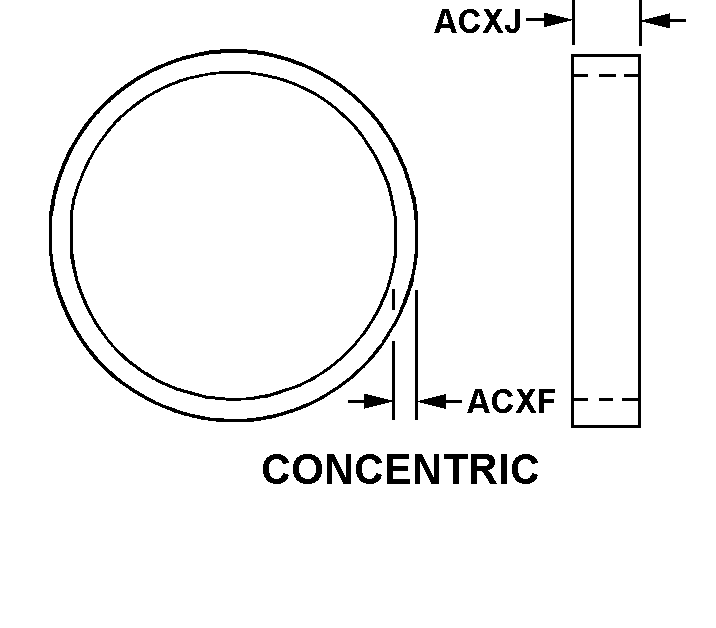

| RING STYLE | 1 CONCENTRIC |
| STANDARD BORE DIAMETER | 2.500 INCHES |
Restrictions/Controls & Freight Information | NSN 4130-00-244-2226
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
