Product Details | S CHAIN HOOK

4030-01-486-7727 A wire formed in the shape of the letter S, used to attach wire chain to other objects.

Part Alternates: 58066411233015, 580-6641123-3015, 5806641123ECHGB243, 580-6641123-ECHG-B2-43, 6641123, 4030-01-486-7727, 01-486-7727, 4030014867727, 014867727

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG) NSN Assign. NIIN
40 16 JUL 2001 01-486-7727

Drawings & Photos | NSN 4030-01-486-7727


Cross Reference | NSN 4030-01-486-7727

Part Number Cage Code Manufacturer
580-6641123-3015 53711 NAVAL SEA SYSTEMS COMMAND
580-6641123-ECHG-B2-43 53711 NAVAL SEA SYSTEMS COMMAND
6641123 53711 NAVAL SEA SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-01-486-7727

Technical Data | NSN 4030-01-486-7727

Characteristic Specifications
MATERIAL STEEL COMP 304
MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-763, CL-304, COND-B FED SPEC SINGLE MATERIAL RESPONSE

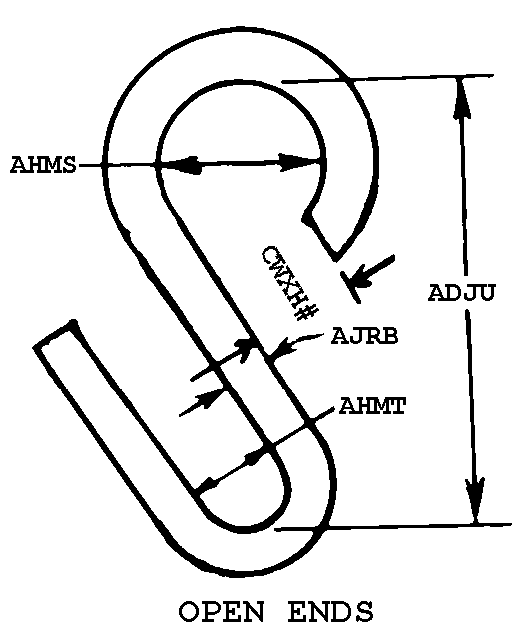

STYLE DESIGNATOR 84 OPEN ENDS
INSIDE LENGTH 1.900 INCHES NOMINAL
UPPER LOOP INSIDE DIAMETER 0.600 INCHES NOMINAL
LOWER LOOP INSIDE DIAMETER 0.600 INCHES NOMINAL
MATERIAL DIAMETER 0.250 INCHES NOMINAL
SPECIAL FEATURES UPPER LOOP IS CLOSED AT TIME OF ASSEMBLY. PART OF EXTERNAL COUNTERMEASURE LAUNCHER HANDLING GEAR
III END ITEM IDENTIFICATION SEAWOLF CLASS SSN

Restrictions/Controls & Freight Information | NSN 4030-01-486-7727

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 105200 FITTINGS CABLE/CHAIN/ROPE I/S
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 576 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4030-01-486-7727

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
