NSN 4030-01-412-9302 406706001101, 406-706-001-101, 01-412-9302
Product Details | CARGO HOOK
4030-01-412-9302 A strongly constructed item having a short leg extending from its base toward the point of the item to prevent the sling or line from slipping off the item. Some styles are furnished with swivels, links, and the like, for special uses. Excludes items with safety throat closures that completely close the opening. For items with safety throat closures, see HOOK, HOIST.
Part Alternates: 406706001101, 406-706-001-101, 4030-01-412-9302, 01-412-9302, 4030014129302, 014129302
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 02 MAY 1995 | 01-412-9302 | 11153 ( HOOK, CARGO ) |
Drawings & Photos | NSN 4030-01-412-9302
Cross Reference | NSN 4030-01-412-9302
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 406-706-001-101 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-01-412-9302
Related Products | NSN 4030-01-412-9302
Technical Data | NSN 4030-01-412-9302
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| SURFACE TREATMENT | CADMIUM AND NICKEL OR PHOSPHATE |

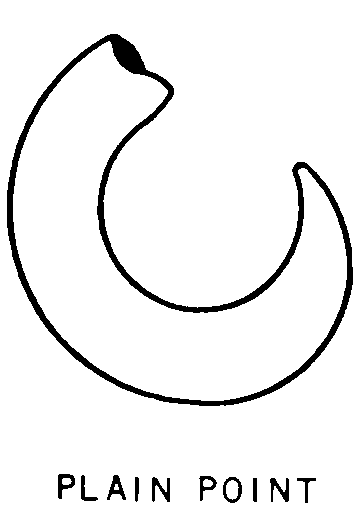

| STYLE DESIGNATOR | 70 PLAIN POINT |
| SPECIAL FEATURES | ELECTRICAL REQUIREMENTS FOR RELEASE AT DROPPING CAPACITY: 22.28VDC(11 TO 14 AMPS); MOUNTING: SINGLE- POINT UNIVERSAL; MECHANICAL CONNECTOR:MATES WITH SP-1033-1; ELECTRICAL CONNECTOR: MATES WITH PC 07E.8-2P OR KPSE08E12-3P; UNIT WEIGHT: 3.750 LBS. |
| III END ITEM IDENTIFICATION | OH-58D HELICOPTER,OBSN/SCT |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 406-706-001-101 |
Restrictions/Controls & Freight Information | NSN 4030-01-412-9302
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 184850 | TOOLS:HOOKS GRAB/HOIST/ROOT ETC |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-01-412-9302
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | A | Aircraft |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
