Product Details | ROPE THIMBLE

4030-01-339-5610 A metallic or nonmetallic ring, loop, solid plate, casting or moulding, formed with a grooved outer edge to fit within an eye splice; or maybe a crescent-shaped hollow tube. It is generally used in multiple leg slings to protect from chafing.

Part Alternates: FIG3231-1/4, FIG323114, 4030-01-339-5610, 01-339-5610, 4030013395610, 013395610

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG) NSN Assign. NIIN
40 23 MAY 1991 01-339-5610

Drawings & Photos | NSN 4030-01-339-5610


Cross Reference | NSN 4030-01-339-5610

Part Number Cage Code Manufacturer
FIG3231-1/4 76786 BUCKLES INTERNATIONAL, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-01-339-5610

Technical Data | NSN 4030-01-339-5610

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING

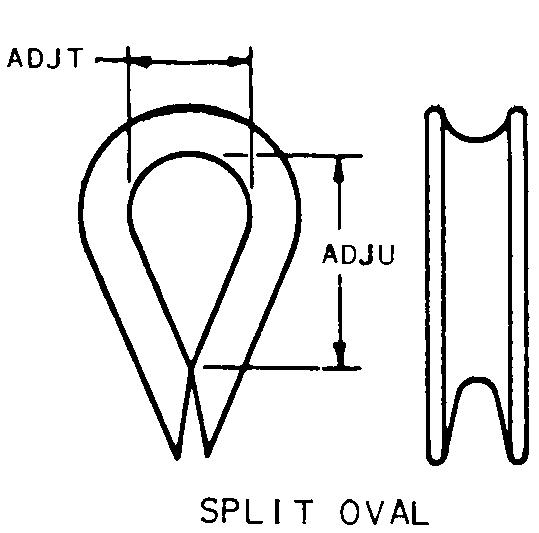

STYLE DESIGNATOR 202 SPLIT OVAL
INSIDE WIDTH 0.750 INCHES NOMINAL
INSIDE LENGTH 2.000 INCHES NOMINAL
ACCOMMODATED MATERIAL DIAMETER 0.250 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 4030-01-339-5610

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
