Product Details | SWIVEL AND LINK ASSEMBLY

4030-01-246-3996 A device consisting of two parts, which are mounted on a common axis so as to permit a relative rotation between the parts, having one or more fixed or detachable items attached to one or both ends of the device. Does not include items with chain.

Part Alternates: A8600217151, A-86002-17151, 4030-01-246-3996, 01-246-3996, 4030012463996, 012463996

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG) NSN Assign. NIIN
40 13 DEC 1986 01-246-3996

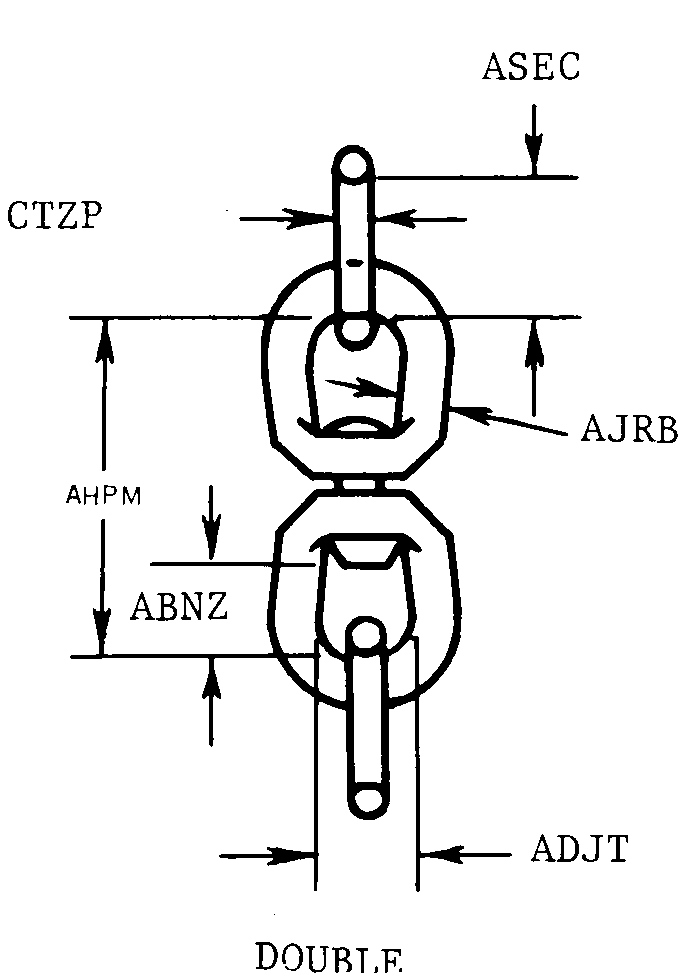

Drawings & Photos | NSN 4030-01-246-3996


Cross Reference | NSN 4030-01-246-3996

Part Number Cage Code Manufacturer
A-86002-17151 83644 BALDT, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-01-246-3996

Technical Data | NSN 4030-01-246-3996

Characteristic Specifications
MATERIAL STEEL
SURFACE TREATMENT VARNISH BLACK
STYLE DESIGNATOR 196 DOUBLE
MANUFACTURERS CODE 83644
DESIGN CONTROL REFERENCE A-86002-17151

Restrictions/Controls & Freight Information | NSN 4030-01-246-3996

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 105200 FITTINGS CABLE/CHAIN/ROPE I/S
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 576 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4030-01-246-3996

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
