NSN 4030-01-100-1685 38850-00017-102, 01-100-1685, 3885000017102
Product Details | HOOK SAFETY LATCH
4030-01-100-1685 An item which is mounted on the opening of a hook and prevents slipping and/or load loss. It automatically returns to its initial position by spring action. It may include a spring, bolt, nut and/or clamp.
Part Alternates: 38850-00017-102, 4030-01-100-1685, 01-100-1685, 3885000017102, 4030011001685, 011001685
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 29 AUG 1980 | 01-100-1685 | 42519 ( LATCH, SAFETY, HOOK ) |

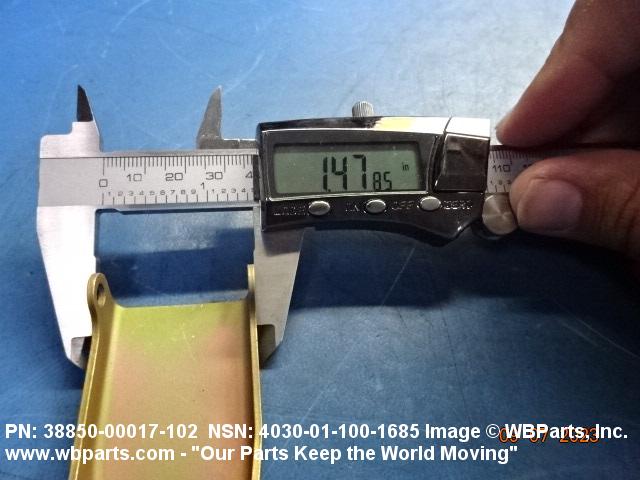

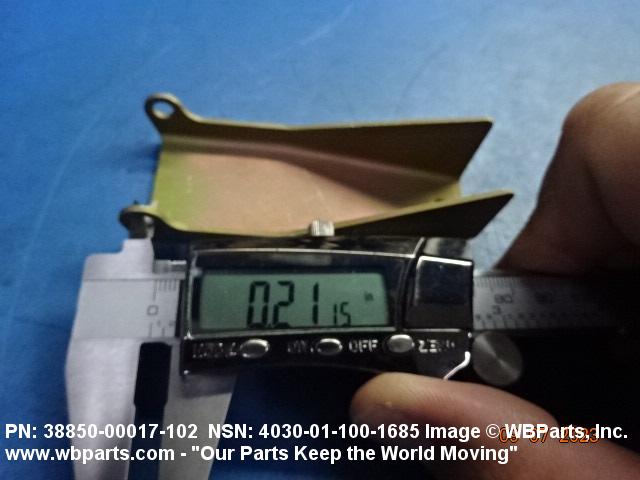

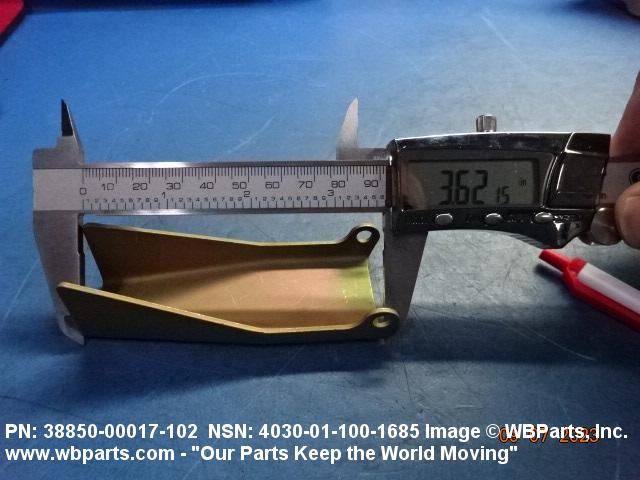

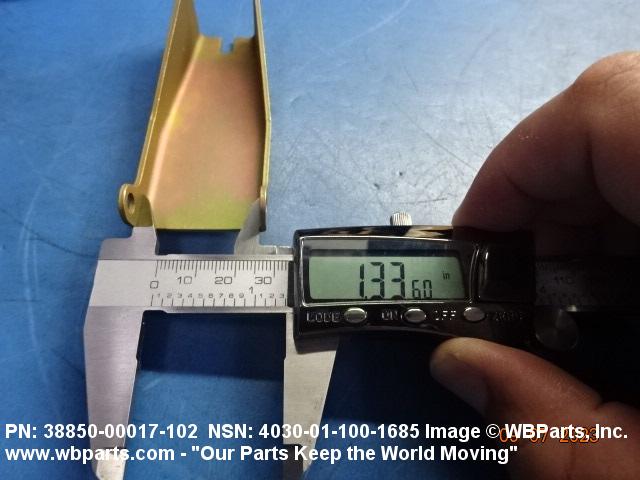

Drawings & Photos | NSN 4030-01-100-1685
Demand History | NSN 4030-01-100-1685
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-01-100-1685 | 2023-06-167 | 50 | US |
| 4030-01-100-1685 | 2023-03-76 | 25 | United States |
| 4030-01-100-1685 | 2023-01-24 | 10 | United States |
| 4030-01-100-1685 | 2023-01-20 | 10 | United States |
| 4030-01-100-1685 | 2019-08-218 | 289 | DIBBS |
| 4030-01-100-1685 | 2018-11-322 | 138 | DIBBS |
| 4030-01-100-1685 | 2017-08-234 | 231 | DIBBS |
| 4030-01-100-1685 | 2017-08-225 | 231 | DIBBS |
| 4030-01-100-1685 | 2012-11-312 | 1307 | DIBBS |
| 4030-01-100-1685 | 2012-10-278 | 1504 | DIBBS |
| 4030-01-100-1685 | 2012-05-136 | 80 | UM |
| 4030-01-100-1685 | 2011-07-210 | 829 | DIBBS |
| 4030-01-100-1685 | 2008-07-199 | 4800 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-01-100-1685
Related Products | NSN 4030-01-100-1685
Technical Data | NSN 4030-01-100-1685
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC 1ST TREATMENT RESPONSE |
| THROAT OPENING SIZE | 1.340 INCHES NOMINAL |
| LATCH TYPE | CLAMP |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 4030-01-100-1685
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-01-100-1685
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
