NSN 4030-00-838-1278 B13HP, 25549661, 2554966-1
Product Details | JAW AND JAW SWIVEL
4030-00-838-1278 Two U-shaped parts mounted on a common axis so as to permit relative rotation between the parts. The U-shaped parts have a pin or a bolt across the open legs.
Part Alternates: B13HP, 25549661, 2554966-1, 4030-00-838-1278, 00-838-1278, 4030008381278, 008381278
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 16 DEC 1966 | 00-838-1278 | 11085 ( SWIVEL, JAW AND JAW ) |

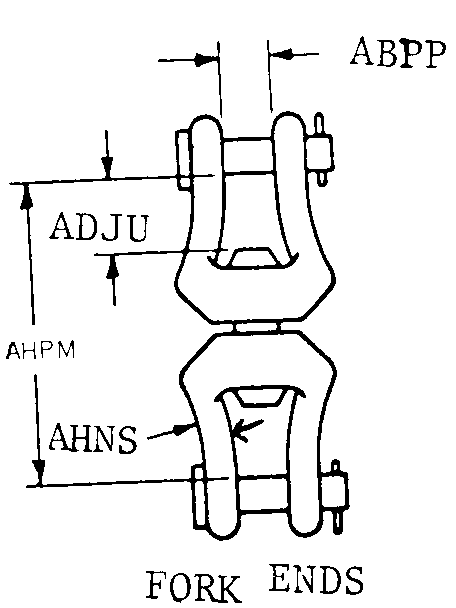

Drawings & Photos | NSN 4030-00-838-1278
Demand History | NSN 4030-00-838-1278
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-838-1278 | 2020-03-02 | 1 | DIBBS-RFPs |
| 4030-00-838-1278 | 2019-04-10 | 7 | DIBBS |
| 4030-00-838-1278 | 2019-03-21 | 7 | DIBBS |
| 4030-00-838-1278 | 2018-12-04 | 9 | DIBBS |
| 4030-00-838-1278 | 2018-03-30 | 1 | DIBBS-RFPs |
| 4030-00-838-1278 | 2017-08-09 | 15 | DIBBS |
| 4030-00-838-1278 | 2017-05-11 | 10 | DIBBS |
| 4030-00-838-1278 | 2013-06-24 | 58 | DIBBS |
| 4030-00-838-1278 | 2013-06-16 | 58 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-838-1278
Related Products | NSN 4030-00-838-1278
Technical Data | NSN 4030-00-838-1278
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | 185 FORK ENDS |
| OPENING WIDTH | 0.500 INCHES NOMINAL |
| LEG END THICKNESS | 0.750 INCHES NOMINAL |
| REACH LENGTH | 4.560 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.375 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
Restrictions/Controls & Freight Information | NSN 4030-00-838-1278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-838-1278
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
