NSN 4030-00-814-5790 MILT23326, 220A, 00-814-5790
Product Details | ROPE THIMBLE
4030-00-814-5790 A metallic or nonmetallic ring, loop, solid plate, casting or moulding, formed with a grooved outer edge to fit within an eye splice; or maybe a crescent-shaped hollow tube. It is generally used in multiple leg slings to protect from chafing.
Part Alternates: MILT23326, 220A, 4030-00-814-5790, 00-814-5790, 4030008145790, 008145790
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1962 | 00-814-5790 | 11234 ( THIMBLE, ROPE ) |
Drawings & Photos | NSN 4030-00-814-5790
Demand History | NSN 4030-00-814-5790
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-814-5790 | 2024-07-200 | 25 | DIBBS |
| 4030-00-814-5790 | 2024-04-113 | 65 | DIBBS |
| 4030-00-814-5790 | 2024-04-105 | 65 | DIBBS |
| 4030-00-814-5790 | 2023-11-323 | 128 | DIBBS |
| 4030-00-814-5790 | 2023-07-197 | 61 | DIBBS |
| 4030-00-814-5790 | 2019-09-259 | 1 | DIBBS-RFPs |
| 4030-00-814-5790 | 2019-04-99 | 64 | United States |
| 4030-00-814-5790 | 2018-09-249 | 64 | United States |
| 4030-00-814-5790 | 2014-11-313 | 560 | DIBBS |
| 4030-00-814-5790 | 2013-08-225 | 405 | DIBBS |
| 4030-00-814-5790 | 2011-12-346 | 283 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-814-5790
Technical Data | NSN 4030-00-814-5790
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

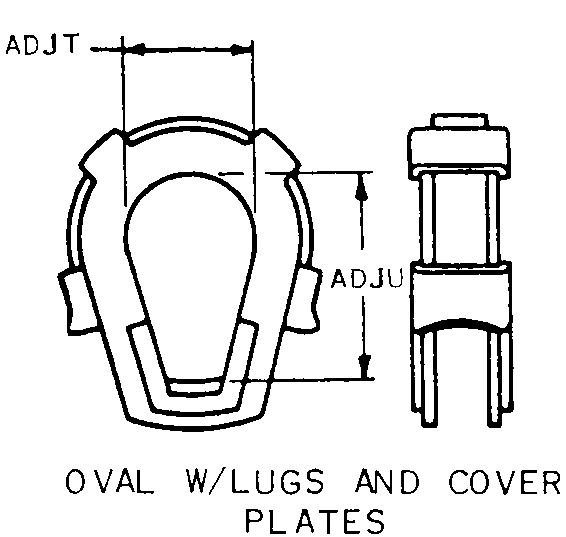

| STYLE DESIGNATOR | 210 OVAL W/LUGS AND COVER PLATES |
| INSIDE WIDTH | 1.000 INCHES NOMINAL |
| INSIDE LENGTH | 1.719 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.562 INCHES NOMINAL |
| FABRICATION METHOD | CAST |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILT23326 |
Restrictions/Controls & Freight Information | NSN 4030-00-814-5790
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-814-5790
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
