NSN 4030-00-781-8058 1146, 00-781-8058, 007818058
Product Details | BEAD CHAIN COUPLING
4030-00-781-8058 A device used to connect the ends of two different items by attaching to their end terminations.
Part Alternates: 1146, 4030-00-781-8058, 00-781-8058, 4030007818058, 007818058
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1961 | 00-781-8058 | 02616 ( COUPLING, BEAD CHAIN ) |

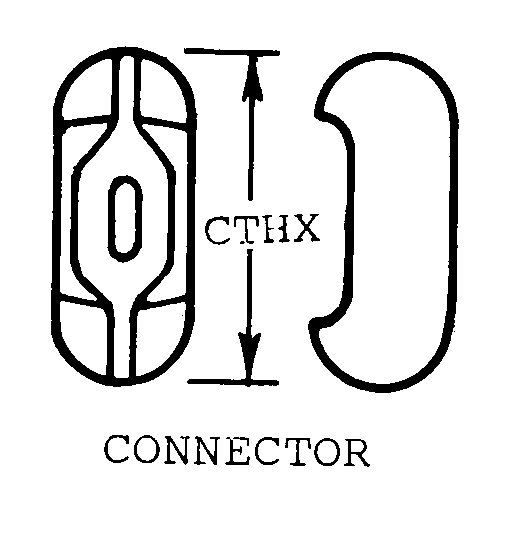

Drawings & Photos | NSN 4030-00-781-8058
Cross Reference | NSN 4030-00-781-8058
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1146 | 91023 | BEATRICE HOME SPECIALTIES INC DIV OF BEATRICE COMPANIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-781-8058
Related Products | NSN 4030-00-781-8058
Technical Data | NSN 4030-00-781-8058
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | NICKEL |
| STYLE DESIGNATOR | 10 CONNECTOR |
| OVERALL HEIGHT | 0.594 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.190 INCHES NOMINAL |
| FEATURES PROVIDED | RING HOLE |
| SPECIAL FEATURES | NONINSULATING TYPE |
Restrictions/Controls & Freight Information | NSN 4030-00-781-8058
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
