NSN 4030-00-530-3587 CVC10414, CVC1041-4, 00-530-3587
Product Details | HOIST HOOK
4030-00-530-3587 A strongly constructed metal item having a relatively narrow, shallow throat. It may or may not have a safety throat closure. Excludes HOOK, LOGGING LINE and HOOK, CARGO.
Part Alternates: CVC10414, CVC1041-4, 4030-00-530-3587, 00-530-3587, 4030005303587, 005303587
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-530-3587 | 11154 ( HOOK, HOIST ) |
Drawings & Photos | NSN 4030-00-530-3587
Cross Reference | NSN 4030-00-530-3587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CVC1041-4 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-530-3587
Technical Data | NSN 4030-00-530-3587
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC OR CADMIUM |
| STYLE DESIGNATOR | 67 REGULAR |

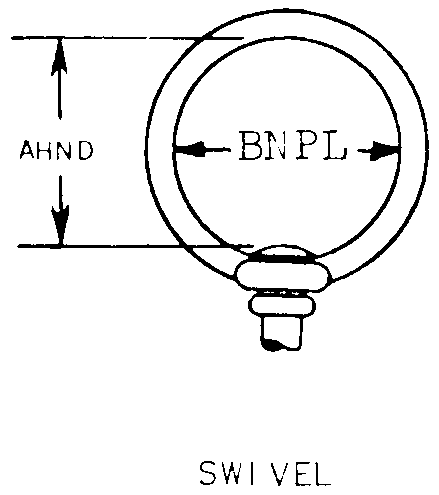

| CONNECTION STYLE | 12 SWIVEL |
| CLEAR OPENING LENGTH | 1.500 INCHES NOMINAL |
| SAFE OPERATING LOAD RATING | 3000.000 POUNDS NOMINAL |
| FEATURES PROVIDED | INWARD SAFETY THROAT CLOSURE |
| MANUFACTURERS CODE | 80378 |
| DESIGN CONTROL REFERENCE | CVC1041-4 |
Restrictions/Controls & Freight Information | NSN 4030-00-530-3587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095370 | HOOKS NOI I/S GALVANIZE/PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
