NSN 4030-00-352-5888 D72, 00-352-5888, 003525888
Product Details | WIRE ROPE SOCKET
4030-00-352-5888 A funnel-shaped receptacle or basket, designed to hold the end of an item when secured by molten metal or by a wedge. Extending from the upper surface of the basket is a closed loop, a stud end, or two clevis-type prongs or jaws with ends perforated to receive a pin attaching the device to another item. See also TERMINAL, WIRE ROPE (as modified).
Part Alternates: D72, 4030-00-352-5888, 00-352-5888, 4030003525888, 003525888
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-352-5888 | 02645 ( SOCKET, WIRE ROPE ) |

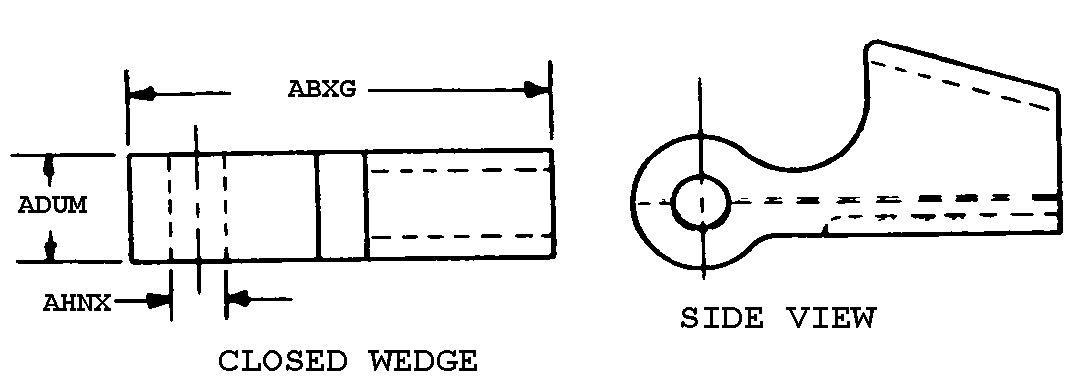

Drawings & Photos | NSN 4030-00-352-5888
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-352-5888
Technical Data | NSN 4030-00-352-5888
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 143 CLOSED WEDGE |
| OVERALL LENGTH | 11.312 INCHES NOMINAL |
| TONGUE THICKNESS | 2.312 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 3.375 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4030-00-352-5888
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
