Product Details | DETACHABLE CHAIN LINK LOCKING PLUG

4030-00-262-2062 A headless item of soft metal used for securing the fastening pin of a device.

Part Alternates: S2603860062PC5, S2603-860062PC5, 4030-00-262-2062, 00-262-2062, 4030002622062, 002622062

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG) NSN Assign. NIIN
40 01 JAN 1963 00-262-2062

Drawings & Photos | NSN 4030-00-262-2062


Demand History | NSN 4030-00-262-2062

Part Number Request Date QTY Origin
4030-00-262-2062 2021-05-129 621 DIBBS
4030-00-262-2062 2013-09-246 3392 DIBBS
4030-00-262-2062 2013-08-238 3392 DIBBS
4030-00-262-2062 2012-11-306 1059 DIBBS
4030-00-262-2062 2012-09-262 971 DIBBS
4030-00-262-2062 2012-04-117 500 DIBBS

Cross Reference | NSN 4030-00-262-2062

Part Number Cage Code Manufacturer
S2603-860062PC5 80064 NAVAL SHIP SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-00-262-2062

Technical Data | NSN 4030-00-262-2062

Characteristic Specifications
MATERIAL LEAD

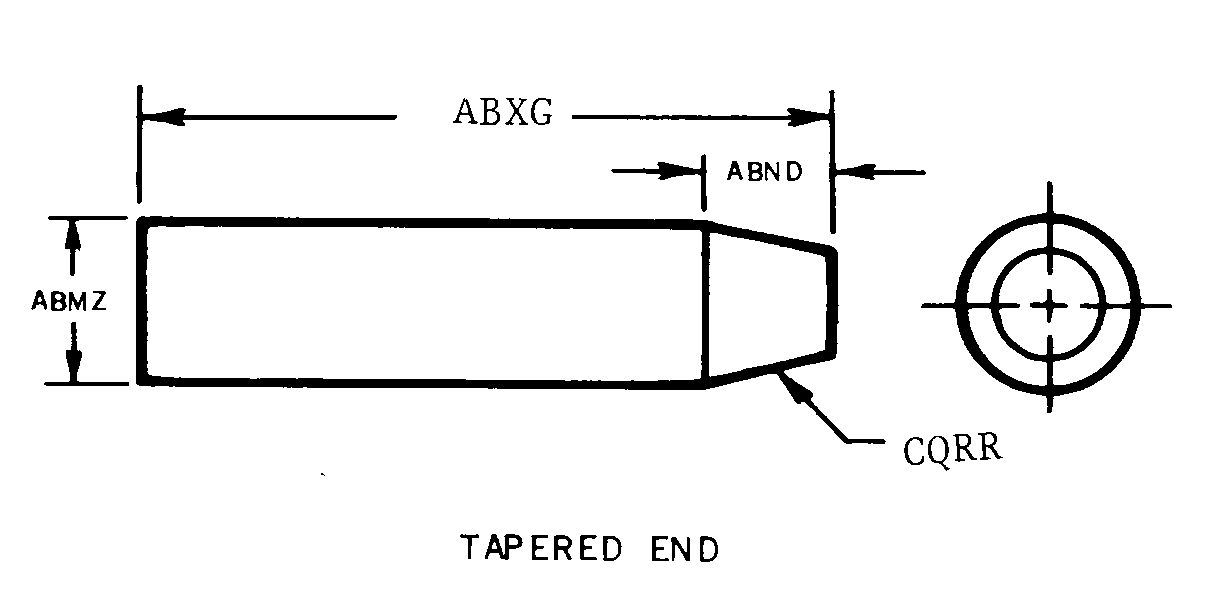

STYLE DESIGNATOR 100 TAPERED END
DIAMETER 0.281 INCHES NOMINAL
TAPER LENGTH 0.250 INCHES NOMINAL
OVERALL LENGTH 0.625 INCHES NOMINAL
TAPER 2.000 PER FOOT IN INCHES
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS AS DIFFERENTIATED BY THE ACCOMMODATEDMATERIAL DIA
MANUFACTURERS CODE 80064
DESIGN CONTROL REFERENCE S2603-860062PC5

Restrictions/Controls & Freight Information | NSN 4030-00-262-2062

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 105200 FITTINGS CABLE/CHAIN/ROPE I/S
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 576 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4030-00-262-2062

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
