NSN 4030-00-211-7310 S33061083204PA, S3306-1083204PA, S33061083204PC13
Product Details | S CHAIN HOOK
4030-00-211-7310 A wire formed in the shape of the letter S, used to attach wire chain to other objects.
Part Alternates: S33061083204PA, S3306-1083204PA, S33061083204PC13, S3306-1083204PC13, 02039 , 4030-00-211-7310, 00-211-7310, 4030002117310, 002117310
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-211-7310 | 02634 ( HOOK, CHAIN, S ) |

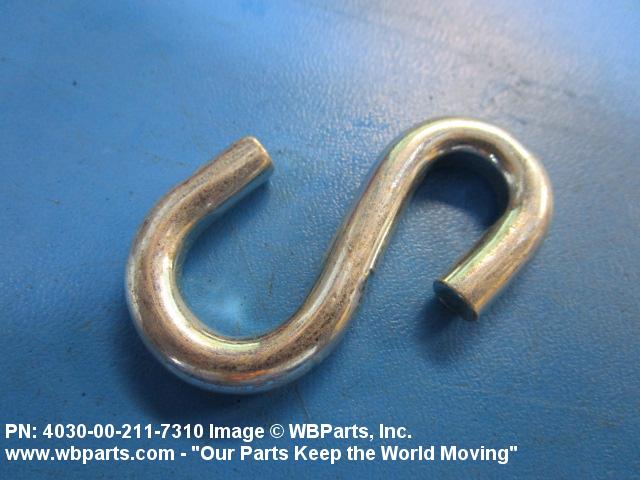

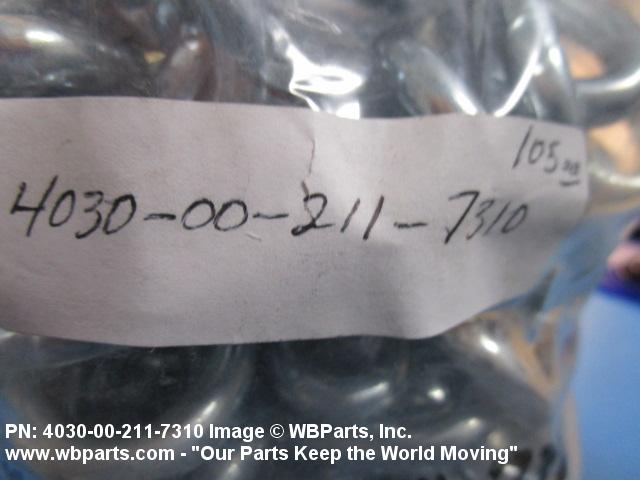

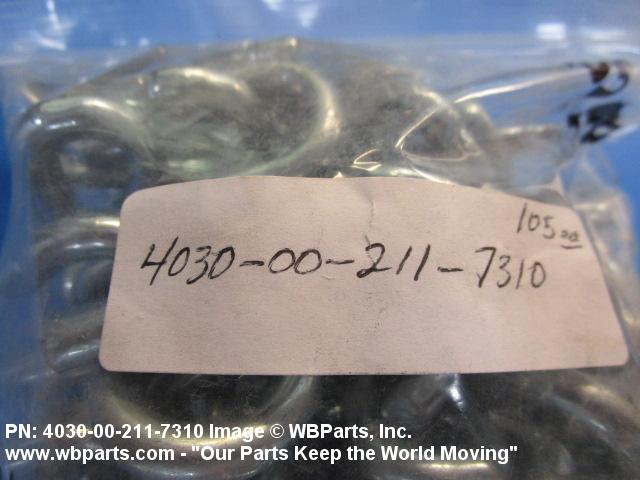

Drawings & Photos | NSN 4030-00-211-7310
Demand History | NSN 4030-00-211-7310
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-211-7310 | 2024-05-137 | 1492 | DIBBS |
| 4030-00-211-7310 | 2022-11-312 | 930 | DIBBS |
| 4030-00-211-7310 | 2021-11-326 | 496 | DIBBS |
| 4030-00-211-7310 | 2021-11-318 | 496 | DIBBS |
| 4030-00-211-7310 | 2021-09-265 | 105 | us |
| 4030-00-211-7310 | 2021-09-251 | 1194 | DIBBS |
| 4030-00-211-7310 | 2021-08-236 | 1194 | DIBBS |
| 4030-00-211-7310 | 2015-09-256 | 3701 | DIBBS |
| 4030-00-211-7310 | 2012-10-290 | 1382 | DIBBS |
| 4030-00-211-7310 | 2012-10-289 | 1382 | DIBBS |
| 4030-00-211-7310 | 2010-06-176 | 1135 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-211-7310
Related Products | NSN 4030-00-211-7310
Technical Data | NSN 4030-00-211-7310
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | 85 OPEN ENDS |

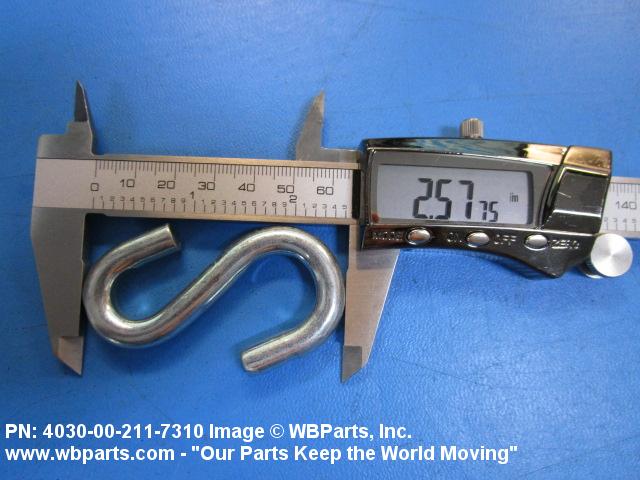

| INSIDE LENGTH | 2.000 INCHES NOMINAL |
| UPPER LOOP INSIDE DIAMETER | 0.500 INCHES NOMINAL |

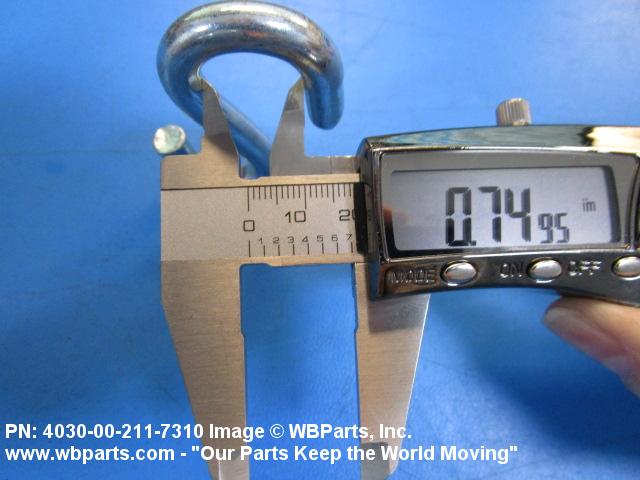

| LOWER LOOP INSIDE DIAMETER | 0.750 INCHES NOMINAL |

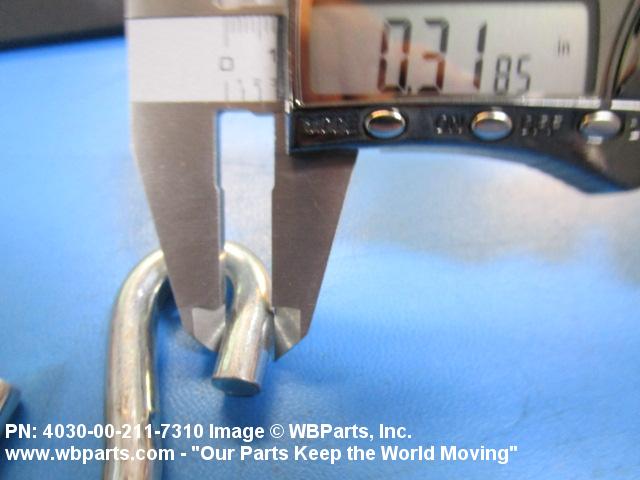

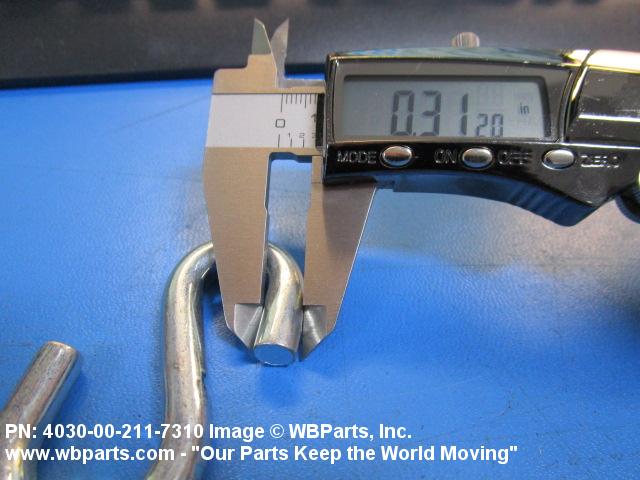

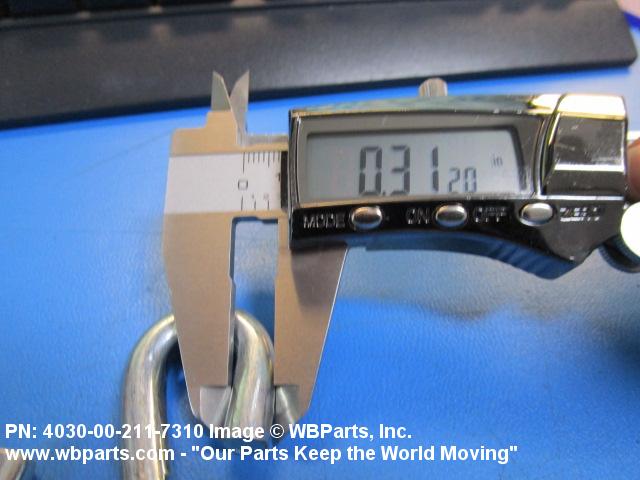

| MATERIAL DIAMETER | 0.312 INCHES NOMINAL |
| MANUFACTURERS CODE | 94421 |
| DESIGN CONTROL REFERENCE | S3306-1083204PC13 |
Restrictions/Controls & Freight Information | NSN 4030-00-211-7310
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-211-7310
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
