Product Details | WIRE ROPE SOCKET

4030-00-166-7574 A funnel-shaped receptacle or basket, designed to hold the end of an item when secured by molten metal or by a wedge. Extending from the upper surface of the basket is a closed loop, a stud end, or two clevis-type prongs or jaws with ends perforated to receive a pin attaching the device to another item. See also TERMINAL, WIRE ROPE (as modified).

Part Alternates: ID9018Y, 4030-00-166-7574, 00-166-7574, 4030001667574, 001667574

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG) NSN Assign. NIIN
40 09 FEB 1973 00-166-7574

Drawings & Photos | NSN 4030-00-166-7574


Demand History | NSN 4030-00-166-7574

Part Number Request Date QTY Origin
4030-00-166-7574 2012-08-221 10 US

Cross Reference | NSN 4030-00-166-7574

Part Number Cage Code Manufacturer
ID9018Y 79931 ESMET, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-00-166-7574

Technical Data | NSN 4030-00-166-7574

Characteristic Specifications
MATERIAL STEEL
SURFACE TREATMENT CADMIUM

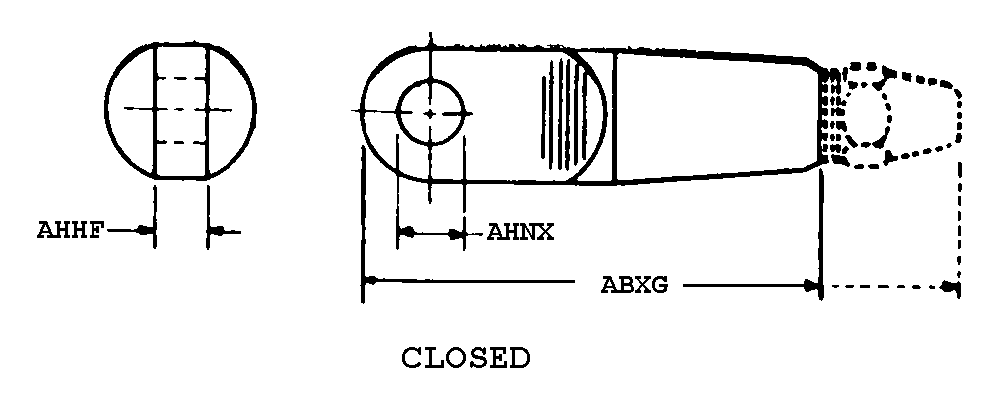

STYLE DESIGNATOR 147 CLOSED
OVERALL LENGTH 3.000 INCHES NOMINAL
TONGUE THICKNESS 0.297 INCHES NOMINAL
BOLT HOLE DIAMETER 0.328 INCHES NOMINAL
ACCOMMODATED MATERIAL DIAMETER 0.188 INCHES NOMINAL
FEATURES PROVIDED WEDGE

Restrictions/Controls & Freight Information | NSN 4030-00-166-7574

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
