Product Details | STUD WIRE ROPE TERMINAL
4030-00-133-6531 An item designed for swaging to another item as an end termination. One end is a cylindrical sleeve and the opposite end is an externally threaded fastener whose threaded portion is of one nominal diameter; its unthreaded portion may be of any shape or size. For items specifically designed for aviation, see TERMINAL, WIRE ROPE, STUD, AVIATION.
Part Alternates: 10867477, 4030-00-133-6531, 00-133-6531, 4030001336531, 001336531
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 22 OCT 1969 | 00-133-6531 | 16287 ( TERMINAL, WIRE ROPE, STUD ) |

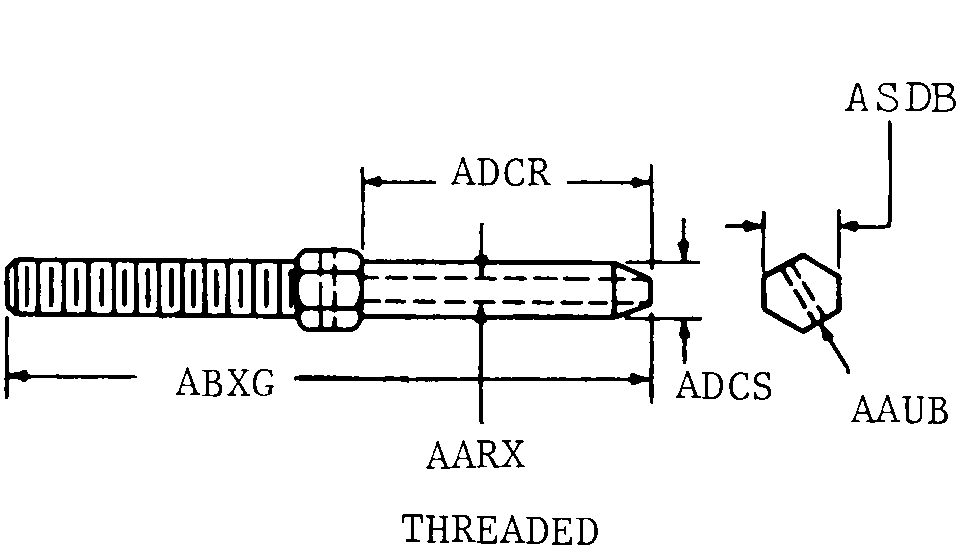

Drawings & Photos | NSN 4030-00-133-6531
Demand History | NSN 4030-00-133-6531
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-133-6531 | 2018-01-07 | 94 | DIBBS |
| 4030-00-133-6531 | 2017-09-264 | 94 | DIBBS |
| 4030-00-133-6531 | 2017-09-257 | 94 | US |
| 4030-00-133-6531 | 2017-09-256 | 94 | DIBBS |
Cross Reference | NSN 4030-00-133-6531
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10867477 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-133-6531
Related Products | NSN 4030-00-133-6531
Technical Data | NSN 4030-00-133-6531
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | 175 THREADED |
| OVERALL LENGTH | 0.938 INCHES MINIMUM AND 1.001 INCHES MAXIMUM |
| PLAIN SHANK LENGTH | 0.125 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| PLAIN SHANK DIAMETER | 0.344 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.094 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 1A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.687 INCHES NOMINAL |
| SPECIAL FEATURES | 0.172 IN. DIA HOLE TAPERED TO 0.109 IN. THRU THD SECTION |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10867477 |
