NSN 4030-00-125-9551 0131756, 01317569, 0131756-9
Product Details | WIRE ROPE SOCKET WEDGE
4030-00-125-9551 A solid metallic, pear-shaped item with a grooved or flat outer edge, around which an item is shaped and inserted into the receptacle of another item.
Part Alternates: 0131756, 01317569, 0131756-9, 31756, 4030-00-125-9551, 00-125-9551, 4030001259551, 001259551
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1961 | 00-125-9551 | 19942 ( WEDGE, WIRE ROPE SOCKET ) |

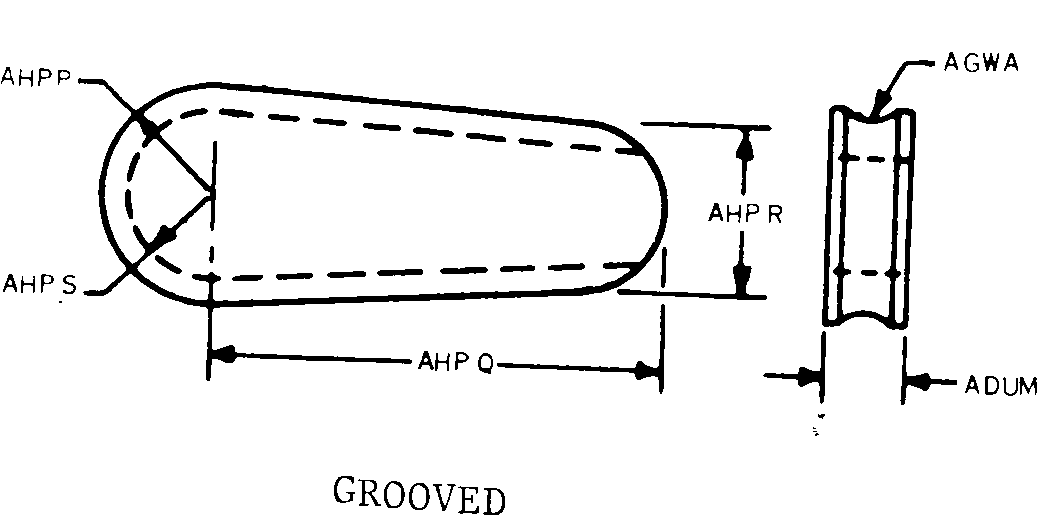

Drawings & Photos | NSN 4030-00-125-9551
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-125-9551
Technical Data | NSN 4030-00-125-9551
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 229 GROOVED |
| OVERALL THICKNESS | 0.500 INCHES NOMINAL |
| GROOVE RADIUS | 1.875 INCHES NOMINAL |
| OUTER RADIUS | 1.750 INCHES NOMINAL |
| DISTANCE FROM HOLE CENTER TO TAPERED END | 4.500 INCHES NOMINAL |
| TAPERED END HEIGHT | 3.000 INCHES NOMINAL |
| INNER RADIUS | 0.281 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.562 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4030-00-125-9551
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-125-9551
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
