NSN 4030-00-125-2852 D62, 00-125-2852, 001252852
Product Details | WIRE ROPE SOCKET WEDGE
4030-00-125-2852 A solid metallic, pear-shaped item with a grooved or flat outer edge, around which an item is shaped and inserted into the receptacle of another item.
Part Alternates: D62, 4030-00-125-2852, 00-125-2852, 4030001252852, 001252852
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
40 | 01 JAN 1963 | 00-125-2852 | 19942 ( WEDGE, WIRE ROPE SOCKET ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-125-2852
Related Products | NSN 4030-00-125-2852
Technical Data | NSN 4030-00-125-2852
Characteristic | Specifications |
---|---|
MATERIAL | IRON MALLEABLE |

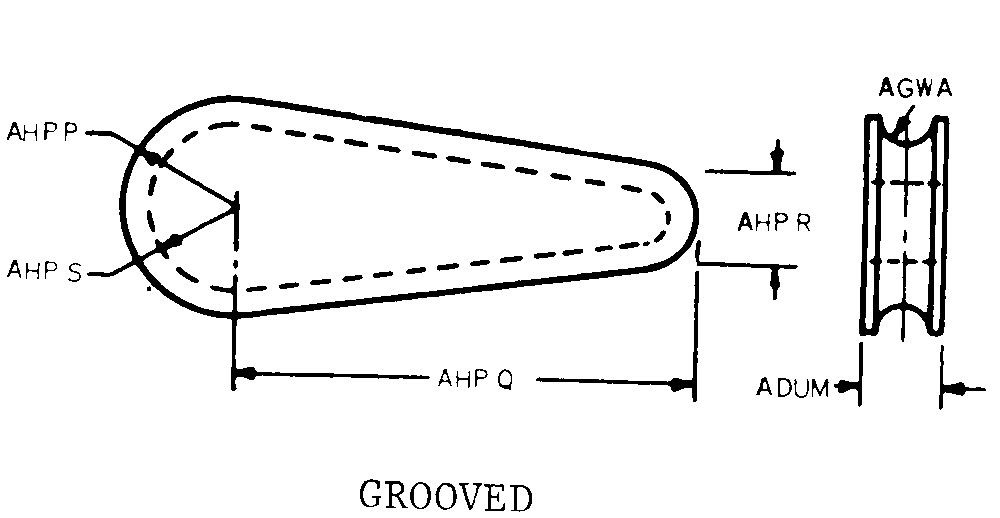

STYLE DESIGNATOR | 227 GROOVED |
OVERALL THICKNESS | 0.625 INCHES NOMINAL |
GROOVE RADIUS | 0.344 INCHES NOMINAL |
OUTER RADIUS | 0.844 INCHES NOMINAL |
DISTANCE FROM HOLE CENTER TO TAPERED END | 4.125 INCHES NOMINAL |
TAPERED END HEIGHT | 0.750 INCHES NOMINAL |
INNER RADIUS | 0.750 INCHES NOMINAL |
ACCOMMODATED MATERIAL DIAMETER | 0.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4030-00-125-2852
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
Less than car load rating | U | 50 |
Less than truck load rating | U | 50.0 |
Water commodity Code | 576 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
