NSN 4030-00-102-9687 235646, 00-102-9687, 001029687
Product Details | S CHAIN HOOK
4030-00-102-9687 A wire formed in the shape of the letter S, used to attach wire chain to other objects.
Part Alternates: 235646, 4030-00-102-9687, 00-102-9687, 4030001029687, 001029687
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 05 JUN 1968 | 00-102-9687 | 02634 ( HOOK, CHAIN, S ) |
Drawings & Photos | NSN 4030-00-102-9687
Demand History | NSN 4030-00-102-9687
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-102-9687 | 2013-08-213 | 3623 | DIBBS |
| 4030-00-102-9687 | 2013-07-199 | 2484 | DIBBS |
| 4030-00-102-9687 | 2010-04-102 | 244 | DIBBS |
Cross Reference | NSN 4030-00-102-9687
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 235646 | 06853 | BENDIX COMMERCIAL VEHICLE SYSTEMS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-102-9687
Related Products | NSN 4030-00-102-9687
Technical Data | NSN 4030-00-102-9687
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |

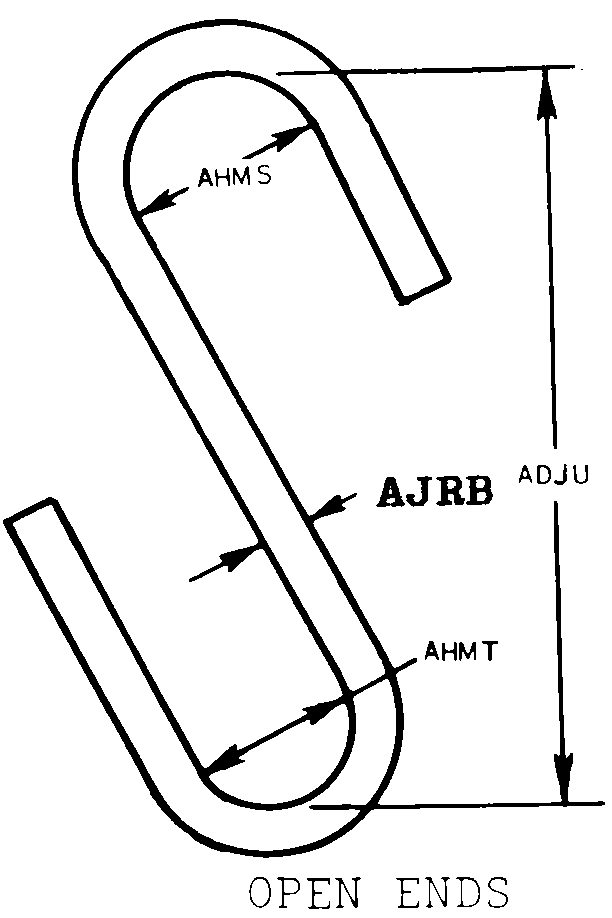

| STYLE DESIGNATOR | 90 OPEN ENDS |
| INSIDE LENGTH | 1.438 INCHES NOMINAL |
| UPPER LOOP INSIDE DIAMETER | 0.438 INCHES NOMINAL |
| LOWER LOOP INSIDE DIAMETER | 0.406 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.135 INCHES NOMINAL |
| MANUFACTURERS CODE | 06853 |
| DESIGN CONTROL REFERENCE | 235646 |
Restrictions/Controls & Freight Information | NSN 4030-00-102-9687
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-102-9687
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NR | Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1, M985 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
