NSN 4020-01-474-2482 M43435TY5SIZE3C, AA52084, A-A-52084

Product Details | LACING AND TYING TAPE

4020-01-474-2482 A narrow textile material fabricated on a braiding machine and treated with penetrating wax or similar substance which enters the interstices of the material from surface to surface.

Part Alternates: M43435TY5SIZE3C, AA52084, A-A-52084, AA52084C3, AA52084-C-3, 4020-01-474-2482, 01-474-2482, 4020014742482, 014742482

Rope, Cable, Chain, and Fittings | Fiber Rope, Cordage, and Twine

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
40	28 APR 2000	01-474-2482	24314 ( TAPE, LACING AND TYING )

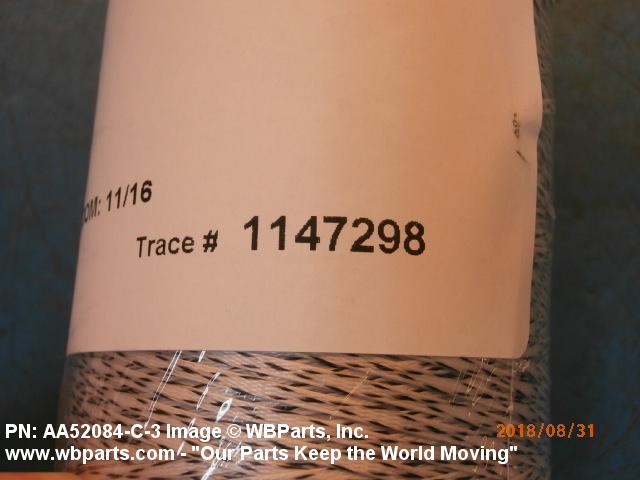

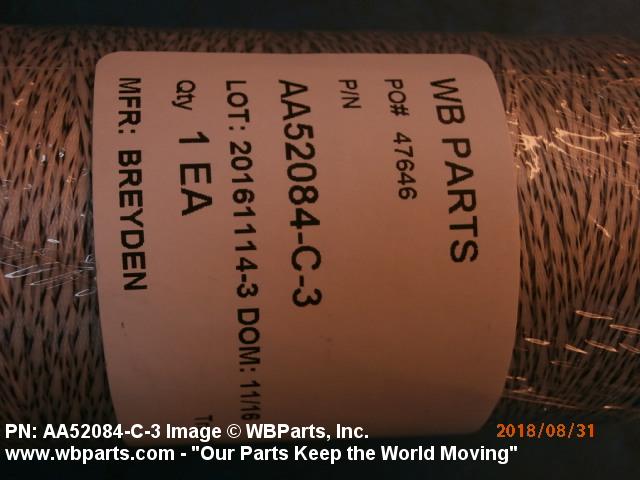

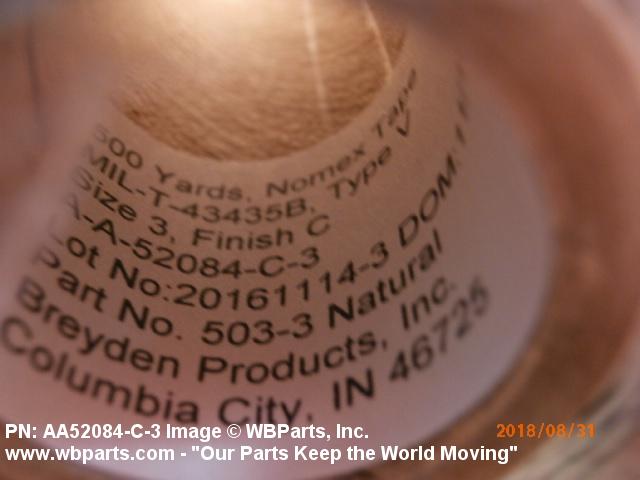

Drawings & Photos | NSN 4020-01-474-2482

Part Number	Request Date	QTY	Origin
4020-01-474-2482	2024-09-249	80	DIBBS
4020-01-474-2482	2023-03-81	229	DIBBS
AA52084C3	2019-10-295	1	United States
AA52084C3	2019-06-163	20	United States
4020-01-474-2482	2019-01-24	5000	US
4020-01-474-2482	2018-09-263	3	United Kingdom
AA52084C3	2018-08-232	1	Canada
4020-01-474-2482	2018-08-214	3	United Kingdom
AA52084C3	2015-11-328	3	United States
AA52084C3	2015-11-328	3	United States
4020-01-474-2482	2015-07-210	100	DIBBS
AA52084	2015-04-119	10	us
AA52084C3	2015-01-29	3	IN
4020-01-474-2482	2015-01-29	76	DIBBS
AA52084C3	2015-01-13	3	IN
4020-01-474-2482	2014-12-336	48	DIBBS
AA52084C3	2014-02-41	25	United States
4020-01-474-2482	2013-05-128	10	us
4020-01-474-2482	2011-07-195	70	DIBBS
4020-01-474-2482	2011-06-157	36	DIBBS
4020-01-474-2482	2010-11-305	60	DIBBS

Cross Reference | NSN 4020-01-474-2482

Part Number	Cage Code	Manufacturer
A-A-52084	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA52084-C-3	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
M43435TY5SIZE3C	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4020-01-474-2482

Compare

Related Products | NSN 4020-01-474-2482

4020-01-475-3596, 4020-01-475-3966, 4020-01-475-6669, 4020-01-475-9242, 4020-01-476-1580

Technical Data | NSN 4020-01-474-2482

Characteristic	Specifications
MATERIAL AND LOCATION	POLYAMIDE NYLON, MIL-T-43435, TYPE 5 OVERALL
COATING MATERIAL	RUBBER, SYNTHETIC
IMPREGNATION MATERIAL	RUBBER, SYNTHETIC
COLOR	NATURAL
LENGTH	500.000 YARDS NOMINAL
OVERALL WIDTH	0.068 INCHES MINIMUM AND 0.083 INCHES MAXIMUM
THICKNESS	0.009 INCHES MINIMUM AND 0.015 INCHES MAXIMUM
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-52084
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA52084-C-3

Restrictions/Controls & Freight Information | NSN 4020-01-474-2482

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	049600	CLOTH TAPE COTTON/SYNTHETIC FIBRE
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	793	unknown
Originating Activity Code	QE
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	K	Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4020-01-474-2482

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
