NSN 4020-01-391-0356 54973859, 5497385-9, 01-391-0356
Product Details | SINGLE LEG FIBER ROPE ASSEMBLY
4020-01-391-0356 An assembly of fiber rope with or without terminal attachments in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain intermediate and/or end attachments such as sliding or fixed ring(s) or hook(s).
Part Alternates: 54973859, 5497385-9, 4020-01-391-0356, 01-391-0356, 4020013910356, 013910356
Rope, Cable, Chain, and Fittings | Fiber Rope, Cordage, and Twine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 02 JUN 1994 | 01-391-0356 | 09766 ( FIBER ROPE ASSEMBLY, SINGLE LEG ) |

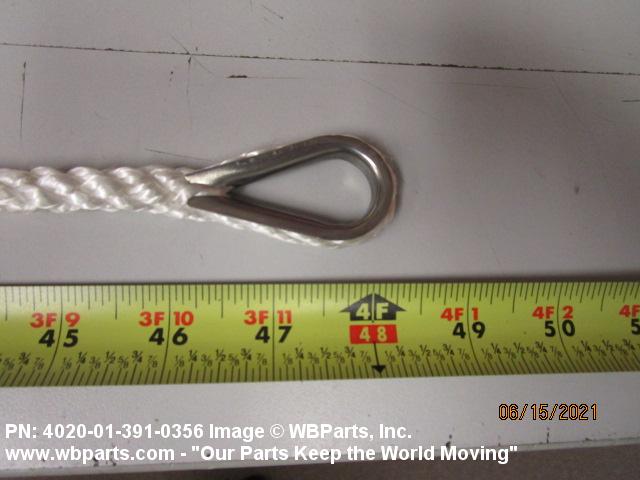

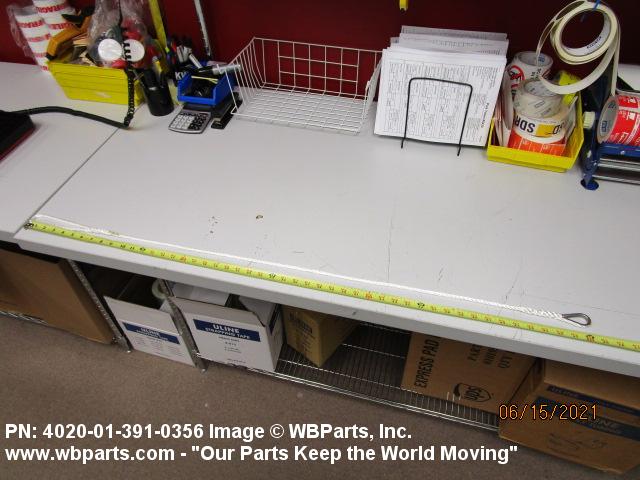

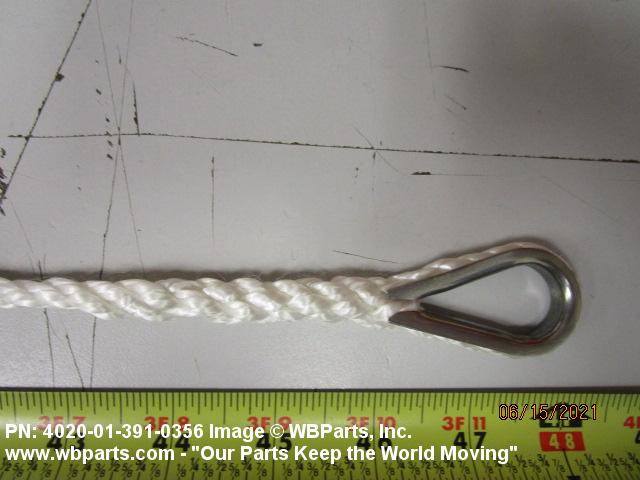

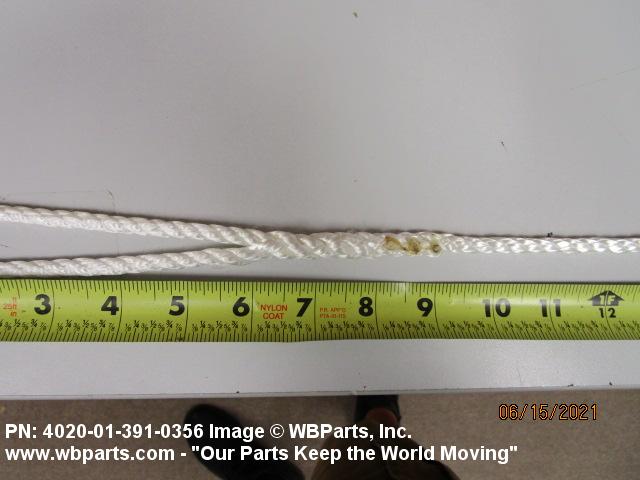

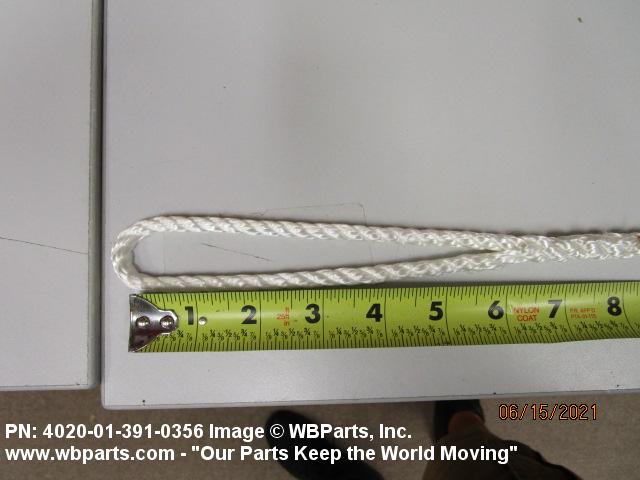

Drawings & Photos | NSN 4020-01-391-0356
Demand History | NSN 4020-01-391-0356
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4020-01-391-0356 | 2023-06-181 | 3 | US |
| 4020-01-391-0356 | 2021-04-111 | 50 | United States |
Cross Reference | NSN 4020-01-391-0356
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5497385-9 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4020-01-391-0356
Technical Data | NSN 4020-01-391-0356
| Characteristic | Specifications |
|---|---|
| COLOR | WHITE |

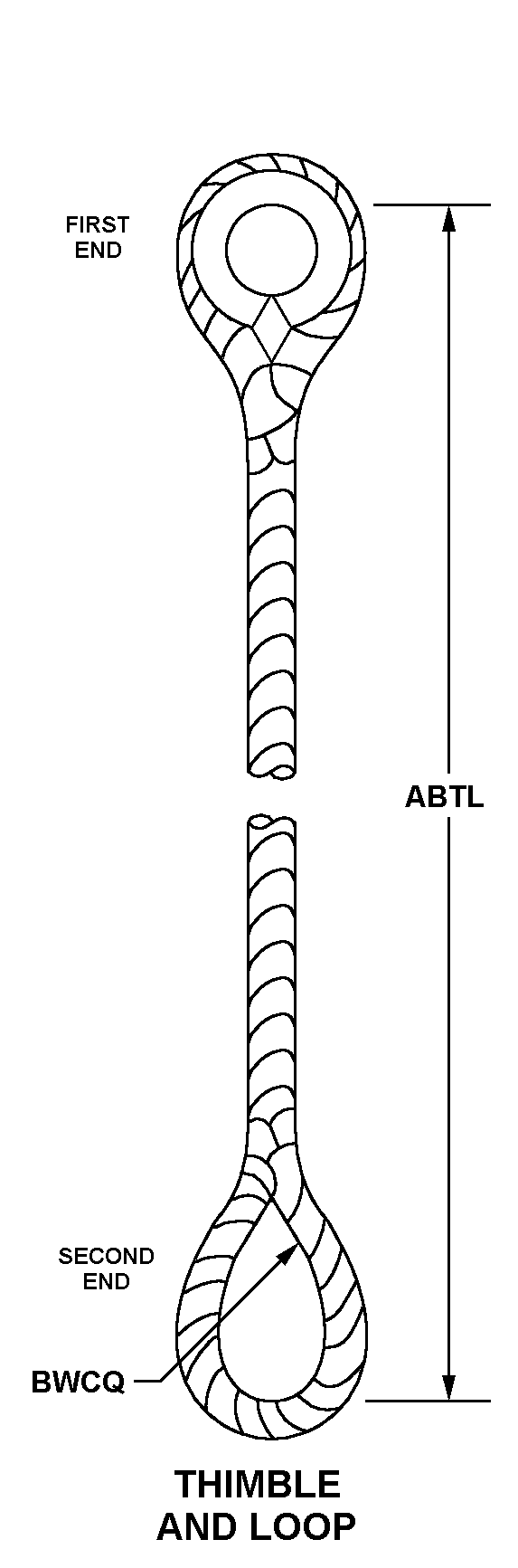

| ROPE STYLE | 4 THIMBLE AND LOOP |
| LENGTH | 47.000 INCHES MINIMUM AND 49.000 INCHES MAXIMUM |
| INNER PERIMETER | 11.250 INCHES MINIMUM AND 14.250 INCHES MAXIMUM |
| THIMBLE STYLE | 5 SPLIT OVAL |
| ASSEMBLY MATERIAL AND LOCATION | POLYAMIDE NYLON, MIL-R-17343 ROPE STEEL THIMBLE |
Restrictions/Controls & Freight Information | NSN 4020-01-391-0356
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 053390 | CORD/CORDAGE/ROPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4020-01-391-0356
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
