NSN 4010-01-530-8436 12423088, 3711T35, 01-530-8436
Product Details | DETACHABLE CHAIN LINK
4010-01-530-8436 A metal link made in two or more pieces, held securely together by means of a locking pin or other device but may taken apart for reuse. It is used to connect a chain and/or a cable and/or a rope and/or a strap, and the like. Excludes transmission chain links.20440100019Chain and Wire Rope40300035Fittings for Rope, Cable, and Chain53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 12423088, 3711T35, 4010-01-530-8436, 01-530-8436, 4010015308436, 015308436
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 14 JUN 2005 | 01-530-8436 | 68660 ( LINK, DETACHABLE ) |

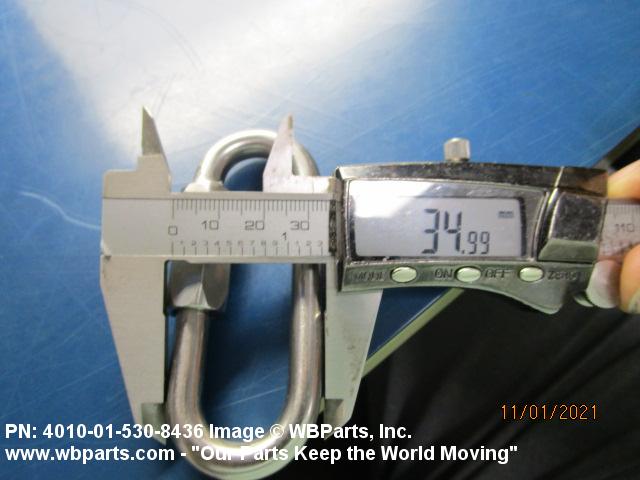

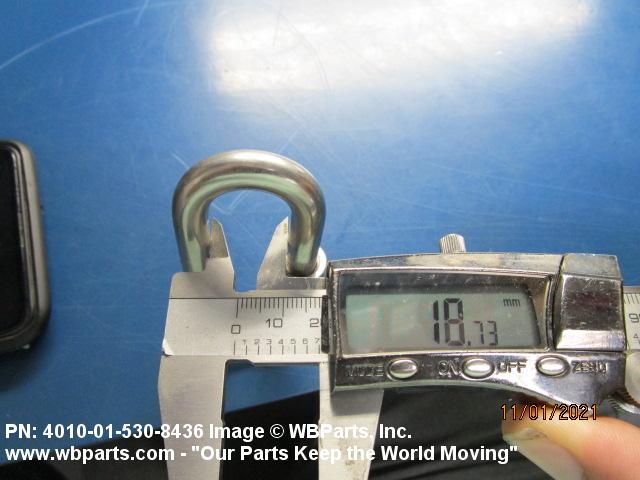

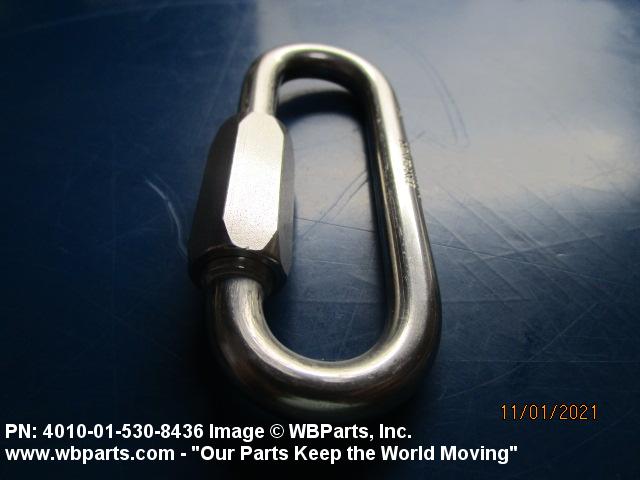

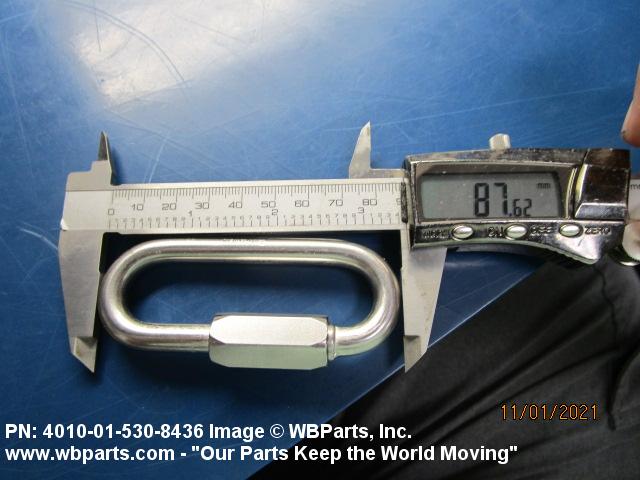

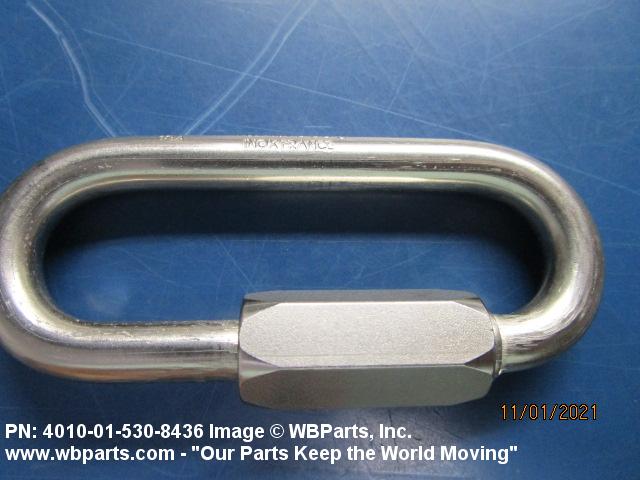

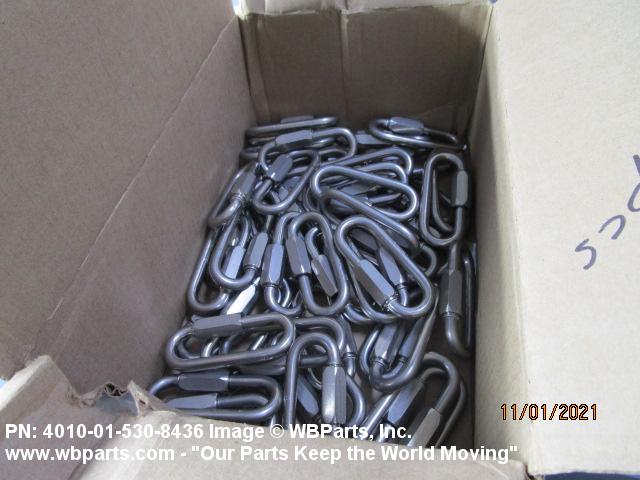

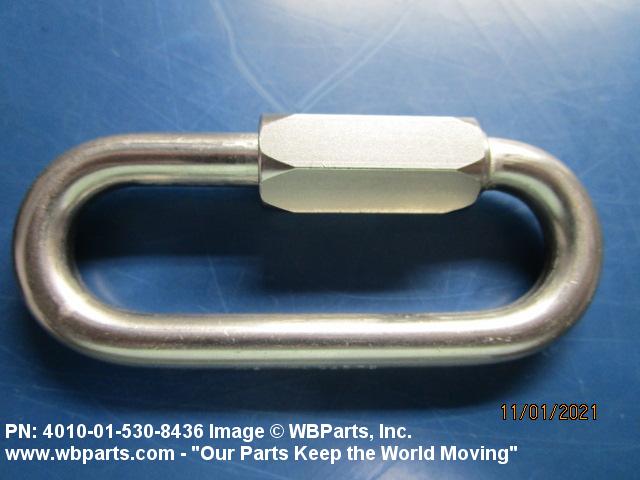

Drawings & Photos | NSN 4010-01-530-8436
Demand History | NSN 4010-01-530-8436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-01-530-8436 | 2022-09-255 | 1835 | DIBBS |
| 4010-01-530-8436 | 2022-09-244 | 1835 | DIBBS |
| 4010-01-530-8436 | 2022-07-201 | 354 | DIBBS |
| 4010-01-530-8436 | 2022-03-76 | 1145 | DIBBS |
| 3711T35 | 2021-10-300 | 50 | United States |
| 12423088 | 2021-10-298 | 50 | United States |
| 4010-01-530-8436 | 2020-10-296 | 1122 | DIBBS |
| 4010-01-530-8436 | 2020-09-274 | 296 | DIBBS |
| 4010-01-530-8436 | 2020-08-240 | 448 | DIBBS |
| 4010-01-530-8436 | 2020-04-110 | 448 | DIBBS |
| 4010-01-530-8436 | 2019-07-185 | 1127 | DIBBS |
| 4010-01-530-8436 | 2019-04-93 | 1015 | DIBBS |
| 4010-01-530-8436 | 2017-12-353 | 950 | DIBBS |
| 4010-01-530-8436 | 2017-12-345 | 950 | US |
| 4010-01-530-8436 | 2017-12-339 | 950 | DIBBS |
| 4010-01-530-8436 | 2017-08-235 | 893 | DIBBS |
| 4010-01-530-8436 | 2017-05-124 | 1142 | DIBBS |
| 4010-01-530-8436 | 2015-12-344 | 1864 | DIBBS |
| 4010-01-530-8436 | 2015-09-252 | 1864 | DIBBS |
| 4010-01-530-8436 | 2013-02-57 | 2825 | DIBBS |
| 4010-01-530-8436 | 2012-11-334 | 348 | DIBBS |
| 4010-01-530-8436 | 2012-07-206 | 367 | DIBBS |
| 4010-01-530-8436 | 2012-03-74 | 0 | DIBBS |
| 4010-01-530-8436 | 2010-04-114 | 266 | DIBBS |
| 4010-01-530-8436 | 2010-04-114 | 583 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-530-8436
Related Products | NSN 4010-01-530-8436
Technical Data | NSN 4010-01-530-8436
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-STD-100G MIL STD ALL MATERIAL RESPONSES AND ASME Y14.5M-1994 ASSN STD ALL MATERIAL RESPONSES |
| SURFACE TREATMENT | OXIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-DTL-13924 MIL STD SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 262 THREADED |
| OPENING WIDTH | 16.5 MILLIMETERS MINIMUM AND 19.5 MILLIMETERS MAXIMUM |
| OVERALL LENGTH | 86.5 MILLIMETERS MINIMUM AND 89.5 MILLIMETERS MAXIMUM |
| III END ITEM IDENTIFICATION | 2320-01-353-9098 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CONNECTOR, THREADED |
Restrictions/Controls & Freight Information | NSN 4010-01-530-8436
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-530-8436
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
