NSN 4010-01-521-6394 250-091115, 01-521-6394, 250091115
Product Details | SINGLE LEG CHAIN ASSEMBLY
4010-01-521-6394 An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc..
Part Alternates: 250-091115, 4010-01-521-6394, 01-521-6394, 4010015216394, 250091115, 015216394
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 28 JUN 2004 | 01-521-6394 | 09765 ( CHAIN ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-521-6394
Demand History | NSN 4010-01-521-6394
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-01-521-6394 | 2013-02-39 | 50 | DIBBS |
| 4010-01-521-6394 | 2012-10-290 | 16 | DIBBS |
| 4010-01-521-6394 | 2012-10-289 | 16 | DIBBS |
| 4010-01-521-6394 | 2012-09-271 | 4 | DIBBS |
| 4010-01-521-6394 | 2011-09-257 | 7 | DIBBS |
| 4010-01-521-6394 | 2011-03-70 | 20 | DIBBS |
| 4010-01-521-6394 | 2011-01-12 | 5 | DIBBS |
| 4010-01-521-6394 | 2010-09-265 | 2 | DIBBS |
Cross Reference | NSN 4010-01-521-6394
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 250-091115 | 3EE99 | E Z LOADER BOAT TRAILERS, INC. DBA EZ LOADER ADJUSTABLE BOAT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-521-6394
Related Products | NSN 4010-01-521-6394
Technical Data | NSN 4010-01-521-6394
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | B633 ASSN STD SINGLE TREATMENT RESPONSE TERMINAL ATTACHMENT FIRST END A153 ASSN STD SINGLE TREATMENT RESPONSE CHAIN |
| STYLE DESIGNATOR | C23 PROOF COIL |
| OVERALL LENGTH | 2.708 FEET NOMINAL |
| SAFE OPERATING LOAD RATING | 18000.0 POUNDS NOMINAL |
| FABRICATION METHOD | FORMED |
| END TYPE | TERMINAL ATTACHMENT TERMINAL ATTACHMENT FIRST END |

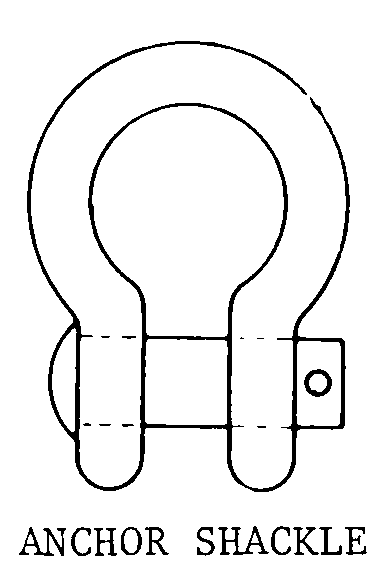

| ATTACHMENT STYLE | D116 ANCHOR SHACKLE FIRST END |
| FURNISHED ITEMS AND QUANTITY | 1 SHACKLE |
| SPECIAL FEATURES | CHAIN 1/2" X 32.5" WITH SHACKLE 1/2". CHAIN MATERIAL C1008, SHACKLE 1045. CHAIN S/N 011.135 F OR 011.135 AF, SHACKLE 670.120.037. INAVY: CHAIN ASSEMBLY, SING |
| III END ITEM IDENTIFICATION | BOAT TRAILER |
Restrictions/Controls & Freight Information | NSN 4010-01-521-6394
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-521-6394
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
