NSN 4010-01-492-6085 M83420/2-016, M834202016, 01-492-6085
Product Details | WIRE ROPE
4010-01-492-6085 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Part Alternates: M83420/2-016, M834202016, 4010-01-492-6085, 01-492-6085, 4010014926085, 014926085
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 05 DEC 2001 | 01-492-6085 | 30295 ( ROPE, WIRE ) |

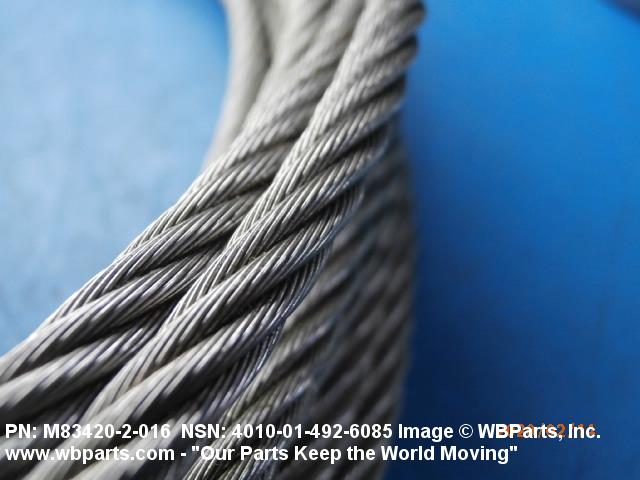

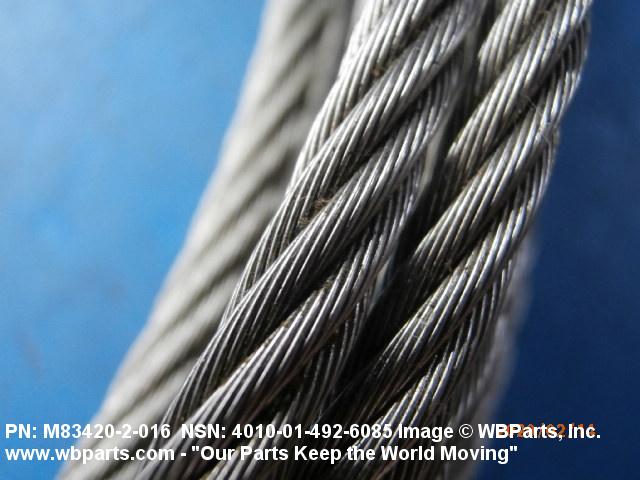

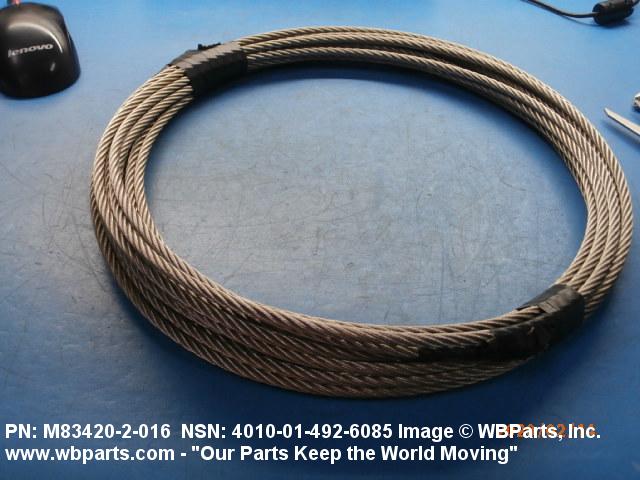

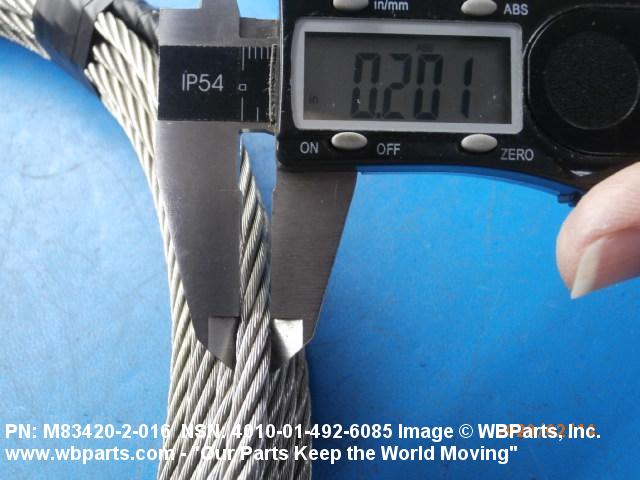

Drawings & Photos | NSN 4010-01-492-6085
Demand History | NSN 4010-01-492-6085
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M834202016 | 2020-01-20 | 40 | Brazil |
Cross Reference | NSN 4010-01-492-6085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M83420/2-016 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-492-6085
Related Products | NSN 4010-01-492-6085
Technical Data | NSN 4010-01-492-6085
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING STRAND |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
| STYLE DESIGNATOR | A124 7 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | STRAIGHT |
| DIAMETER | 0.218 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 5000.0 POUNDS NOMINAL |
| SPECIFICATION/STANDARD DATA | 81349-MIL-DTL-83420/2B GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | C-17A |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83420/2-016 |
Restrictions/Controls & Freight Information | NSN 4010-01-492-6085
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4010-01-492-6085
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
