NSN 4010-01-278-9676 C50781361, C5078136-1, 01-278-9676
Product Details | SINGLE LEG CHAIN ASSEMBLY
4010-01-278-9676 An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc..
Part Alternates: C50781361, C5078136-1, 4010-01-278-9676, 01-278-9676, 4010012789676, 012789676
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 11 MAY 1988 | 01-278-9676 | 09765 ( CHAIN ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-278-9676
Demand History | NSN 4010-01-278-9676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-01-278-9676 | 2022-03-79 | 55 | DIBBS |
| 4010-01-278-9676 | 2020-06-182 | 6 | MANUAL |
| 4010-01-278-9676 | 2015-11-326 | 31 | DIBBS |
| 4010-01-278-9676 | 2012-07-195 | 17 | DIBBS |
| 4010-01-278-9676 | 2011-04-101 | 12 | DIBBS |
| 4010-01-278-9676 | 2011-02-55 | 8 | DIBBS |
| 4010-01-278-9676 | 2011-02-45 | 1 | DIBBS |
Cross Reference | NSN 4010-01-278-9676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5078136-1 | 57958 | SIGNALS WARFARE PROJECT MANAGER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-278-9676
Related Products | NSN 4010-01-278-9676
Technical Data | NSN 4010-01-278-9676
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CHAIN |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A322 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A304 ASSN STD SINGLE MATERIAL RESPONSE CHAIN |
| STYLE DESIGNATOR | C22 CLOSE LINK |
| DIAMETER | 0.250 INCHES NOMINAL STOCK |
| SAFE OPERATING LOAD RATING | 3600.0 POUNDS NOMINAL |
| BREAKING STRENGTH | 14400.0 POUNDS MINIMUM |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |

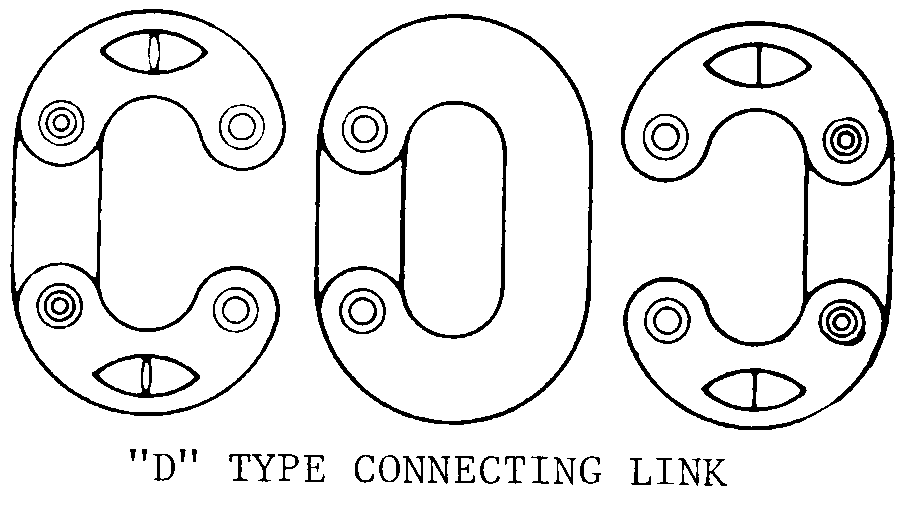

| ATTACHMENT STYLE | D82 D TYPE CONNECTING LINK 1ST INTERMEDIATE ATTACHMENT |
| MANUFACTURERS CODE | 57958 |
| DESIGN CONTROL REFERENCE | C5078136-1 |
Restrictions/Controls & Freight Information | NSN 4010-01-278-9676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-278-9676
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
