NSN 4010-01-136-2203 RRW410, RR-W-410, RRW410TY1CL3C0N
Product Details | WIRE ROPE
4010-01-136-2203 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Part Alternates: RRW410, RR-W-410, RRW410TY1CL3C0N, RRW410TY1CL3CON6, 1323 PIECE 113, 132320, 1323-20, 1323PIECE113, 4010-01-136-2203, 01-136-2203, 4010011362203, 011362203
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 04 AUG 1982 | 01-136-2203 | 30295 ( ROPE, WIRE ) |
Drawings & Photos | NSN 4010-01-136-2203
Demand History | NSN 4010-01-136-2203
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-01-136-2203 | 2023-12-361 | 512 | DIBBS |
| 4010-01-136-2203 | 2022-09-254 | 411 | DIBBS |
| 4010-01-136-2203 | 2019-06-174 | 417 | DIBBS |
| 4010-01-136-2203 | 2017-01-08 | 575 | DIBBS |
| 4010-01-136-2203 | 2015-07-188 | 575 | DIBBS |
| 4010-01-136-2203 | 2013-06-156 | 600 | DIBBS |
| 4010-01-136-2203 | 2013-05-151 | 515 | DIBBS |
| 4010-01-136-2203 | 2013-05-139 | 515 | DIBBS |
| 4010-01-136-2203 | 2012-01-05 | 640 | DIBBS |
| 4010-01-136-2203 | 2011-12-343 | 1137 | DIBBS |
| 4010-01-136-2203 | 2010-01-11 | 100 | DIBBS |
Cross Reference | NSN 4010-01-136-2203
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1323 PIECE 113 | 0DHG4 | GULF COAST HOLDINGS INC DBA UNIDYNAMICS |
| 1323 PIECE 113 | 95310 | UNIDYNAMICS/SAINT LOUIS INC CONROE OPNS |
| 1323 PIECE 113 | 98523 | JERED LLC DBA PAR |
| 1323-20 | 0DHG4 | GULF COAST HOLDINGS INC DBA UNIDYNAMICS |
| 1323-20 | 95310 | UNIDYNAMICS/SAINT LOUIS INC CONROE OPNS |
| 1323-20 | 98523 | JERED LLC DBA PAR |
| RR-W-410 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| RR-W-410, TY 1, CL 3, CON 6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RRW410TY1CL3C0N | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-136-2203
Related Products | NSN 4010-01-136-2203
Technical Data | NSN 4010-01-136-2203
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL IMPROVED PLOW CORE STEEL IMPROVED PLOW STRAND |
| SURFACE TREATMENT | ZINC OVERALL |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |

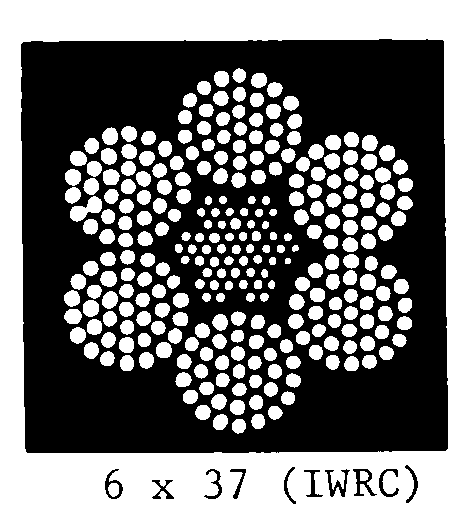

| STYLE DESIGNATOR | A95 6 X 37 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| DIAMETER | 0.375 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 10386.000 POUNDS NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 CLASS AND 7 CONSTRUCTION |
| III END ITEM IDENTIFICATION | TYPE I CLASS 3 CON 6 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RR-W-410 |
Restrictions/Controls & Freight Information | NSN 4010-01-136-2203
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107520 | WIRE ROPE/STRAND I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-136-2203
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q FT : Foot |
