NSN 4010-01-112-8082 MS870083, MS87008-3, RRC271
Product Details | CONNECTING CHAIN LINK
4010-01-112-8082 A metal item in two halves in the shape of a letter C which are fixed together permanently by placing the two halves together and peening over the pins which are an integral part of the item. Excludes LINK, ROLLER CHAIN.
Part Alternates: MS870083, MS87008-3, RRC271, RR-C-271, 4010-01-112-8082, 01-112-8082, 4010011128082, 011128082
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 10 MAY 1981 | 01-112-8082 | 02620 ( LINK, CHAIN, CONNECTING ) |

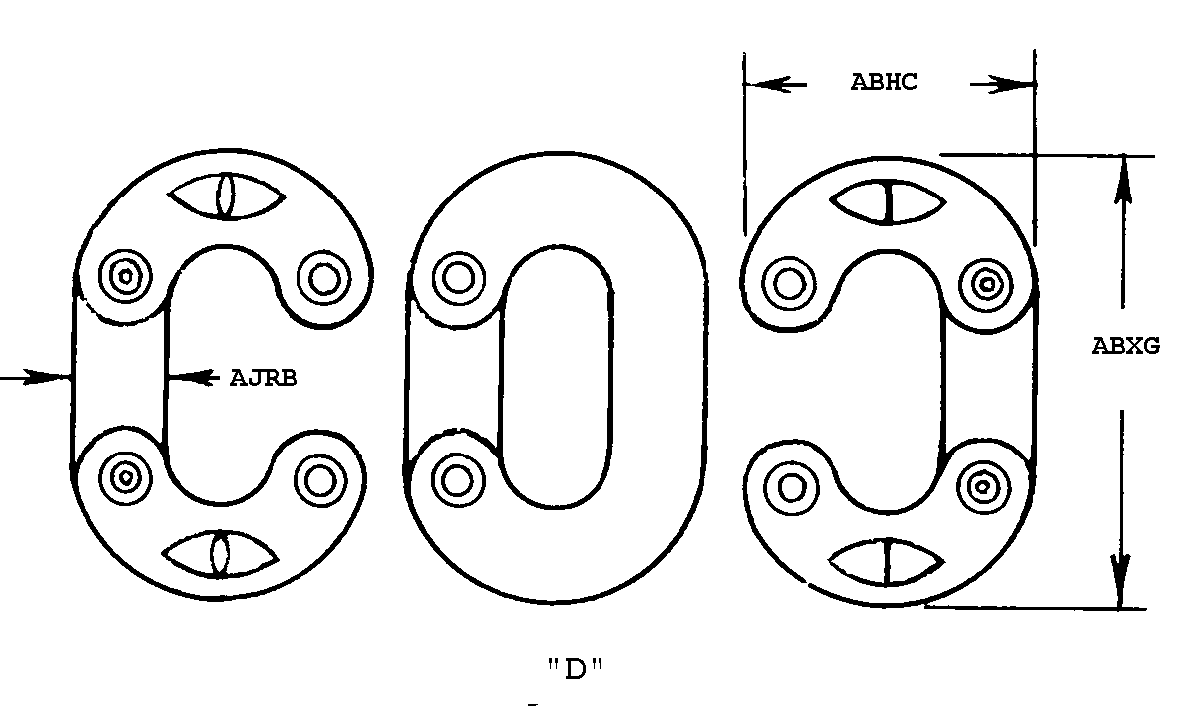

Drawings & Photos | NSN 4010-01-112-8082
Demand History | NSN 4010-01-112-8082
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RR-C-271 | 2022-10-301 | 2 | Malaysia |
| 4010-01-112-8082 | 2022-03-60 | 117 | DIBBS |
| RRC271 | 2021-07-190 | 1 | US |
| 4010-01-112-8082 | 2020-12-351 | 281 | DIBBS |
| 4010-01-112-8082 | 2020-12-336 | 281 | DIBBS |
| RRC271 | 2020-10-296 | 50 | US |
| RRC271 | 2020-01-29 | 1 | GR |
| 4010-01-112-8082 | 2019-10-283 | 195 | DIBBS |
| RR-C-271 | 2019-01-07 | 6 | |
| RR-C-271 | 2019-01-07 | 6 | |
| RRC271 | 2018-04-106 | 1 | US |
| RRC271 | 2018-02-50 | 2 | United States |
| 4010-01-112-8082 | 2015-10-295 | 118 | DIBBS |
| RRC271 | 2014-09-265 | 3 | US |
| RRC271 | 2013-01-11 | 522 | US |
| RRC271 | 2010-11-322 | 300 | US |
| RRC271 | 2010-08-242 | 4 | United States |
| RRC271 | 2010-05-139 | 2 | United States |
| RRC271 | 2008-09-267 | 8000 | US |
| RRC271 | 2008-02-42 | 50 | United States |
| RRC271 | 2007-06-173 | 1000 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-112-8082
Related Products | NSN 4010-01-112-8082
Technical Data | NSN 4010-01-112-8082
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | RR-C-271 GR C FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ZINC OR ZINC AND CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A153 ASSN STD 1ST TREATMENT RESPONSE OR QQ-Z-325,TY 2 CL 3 FED SPEC 2ND TREATMENT RESPONSE |
| STYLE DESIGNATOR | 246 D |
| OVERALL WIDTH | 1.375 INCHES NOMINAL |
| OVERALL LENGTH | 2.062 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.375 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS87008-3 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RR-C-271 |
Restrictions/Controls & Freight Information | NSN 4010-01-112-8082
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-112-8082
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
