NSN 4010-00-959-7385 S2603668185, S2603-668185, 00-959-7385
Product Details | SINGLE LEG CHAIN ASSEMBLY
4010-00-959-7385 An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc..
Part Alternates: S2603668185, S2603-668185, 4010-00-959-7385, 00-959-7385, 4010009597385, 009597385
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1962 | 00-959-7385 | 09765 ( CHAIN ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-00-959-7385
Demand History | NSN 4010-00-959-7385
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-00-959-7385 | 2021-02-42 | 1 | DIBBS |
| 4010-00-959-7385 | 2021-02-34 | 1 | DIBBS |
| 4010-00-959-7385 | 2021-02-32 | 1 | DIBBS |
| 4010-00-959-7385 | 2021-01-24 | 1 | DIBBS |
Cross Reference | NSN 4010-00-959-7385
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S2603-668185 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-00-959-7385
Related Products | NSN 4010-00-959-7385
Technical Data | NSN 4010-00-959-7385
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL ALL ATTACHMENTS |
| STYLE DESIGNATOR | C20 CRANE |
| SAFE OPERATING LOAD RATING | 48000.000 POUNDS NOMINAL |
| FABRICATION METHOD | FORGED |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |

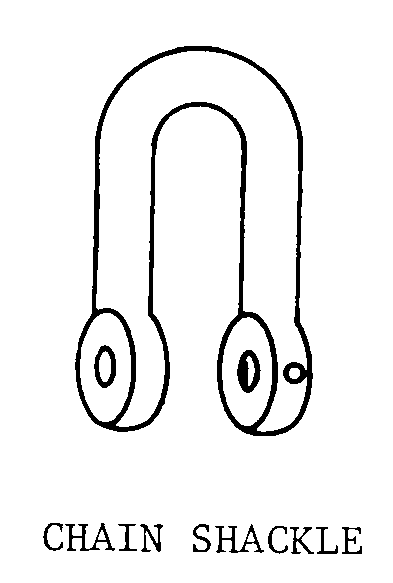

| ATTACHMENT STYLE | D127 CHAIN SHACKLE TERMINAL ATTACHMENT FIRST END D85 ENLARGED COMMON LINK 1ST INTERMEDIATE ATTACHMENT D85 ENLARGED COMMON LINK 2ND INTERMEDIATE ATTACHMENT D85 ENLARGED COMMON LINK TERMINAL ATTACHMENT SECOND END |
| SPECIAL FEATURES | FURNISHED WITH 15 PANTHOMS OF 1 5/8 DIAMETER WIRE ROPE |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY SIZE 4 3/4 IN |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | S2603-668185 |
Restrictions/Controls & Freight Information | NSN 4010-00-959-7385
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-959-7385
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
