NSN 4010-00-958-3866 BB5125 , Q317002066, RRW410
Product Details | WIRE ROPE
4010-00-958-3866 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Part Alternates: BB5125 , Q317002066, RRW410, 2322180135K10, 2322-180-135K10 , 31286366, 312863-66 , 32186366, 321863-66 , 4010-00-958-3866, 00-958-3866, 4010009583866, 009583866
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 25 MAY 1966 | 00-958-3866 | 30295 ( ROPE, WIRE ) |
Drawings & Photos | NSN 4010-00-958-3866
Cross Reference | NSN 4010-00-958-3866
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRW410 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-958-3866
Technical Data | NSN 4010-00-958-3866
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL IMPROVED PLOW CORE STEEL IMPROVED PLOW STRAND |
| CORE CONSTRUCTION | WIRE |

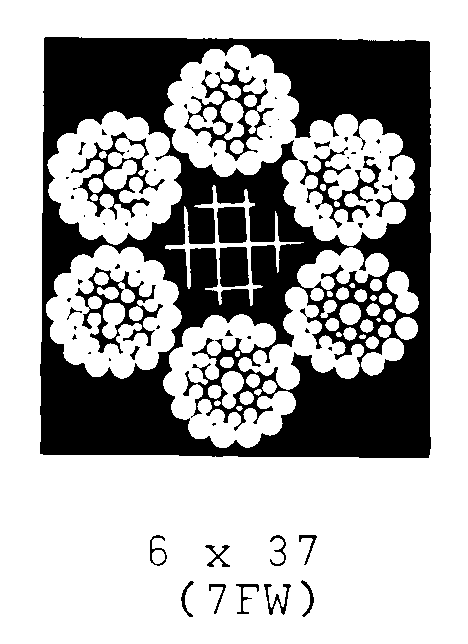

| STYLE DESIGNATOR | A114 6 X 37 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| DIAMETER | 0.750 INCHES MINIMUM AND 0.781 INCHES MAXIMUM ROPE |
| BREAKING STRENGTH | 47385.000 POUNDS MINIMUM |
| SPECIAL FEATURES | PRESTRESSED TO 40 PCT OF MIN BREAKING STRENGTH |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 CLASS AND 8 CONSTRUCTION |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RRW410 |
Restrictions/Controls & Freight Information | NSN 4010-00-958-3866
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | 61 | Central Intelligence Agency Washington, DC 20505 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-958-3866
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
