NSN 4010-00-894-2608 M83420/3-003, M834203003, SMC4236491

Product Details | WIRE ROPE

4010-00-894-2608 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.

Part Alternates: M83420/3-003, M834203003, SMC4236491, SMC423649-1, MIL-DTL-83420/3, MILDTL834203, MILW83420, MIL-W-83420, MIL-W-83420/3, MILW834203, 1144054, 114405-4, 4010-00-894-2608, 00-894-2608, 4010008942608, 008942608

Rope, Cable, Chain, and Fittings | Chain and Wire Rope

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
40	03 FEB 1967	00-894-2608	30295 ( ROPE, WIRE )

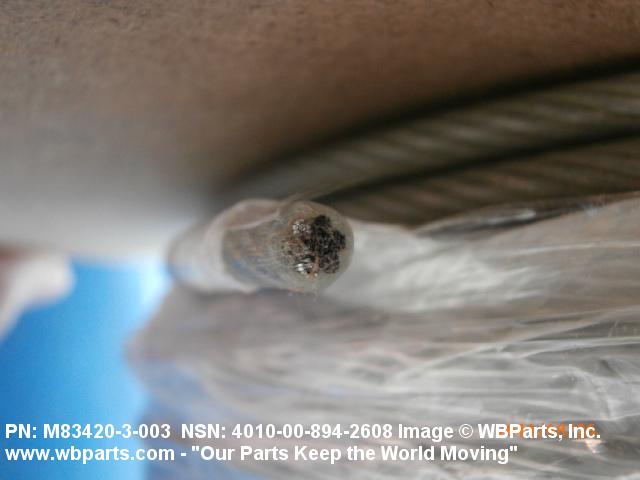

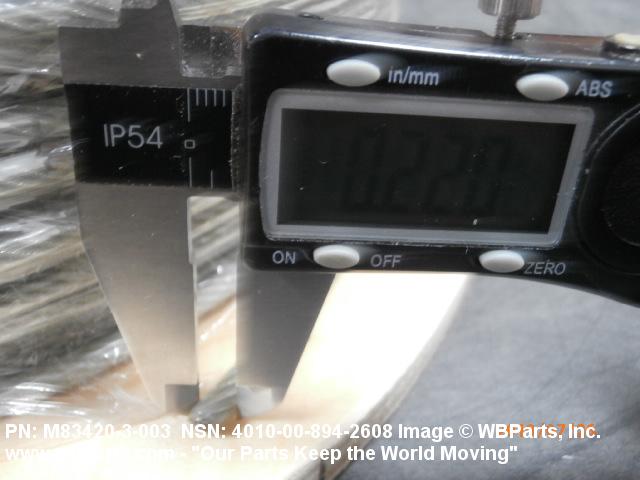

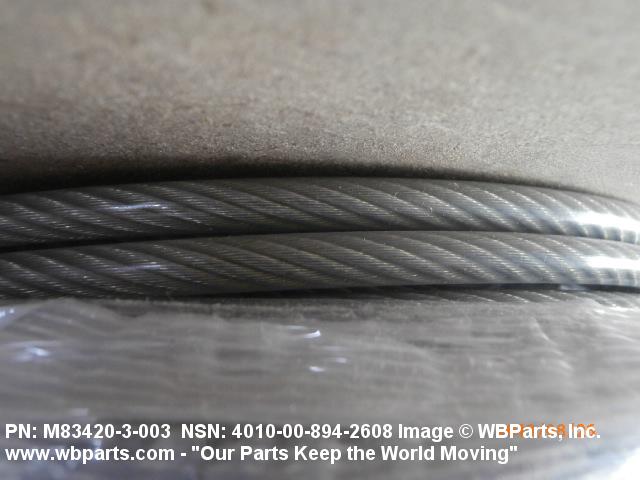

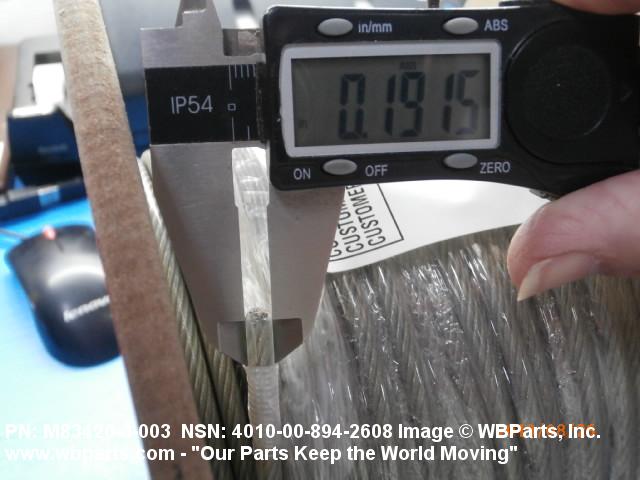

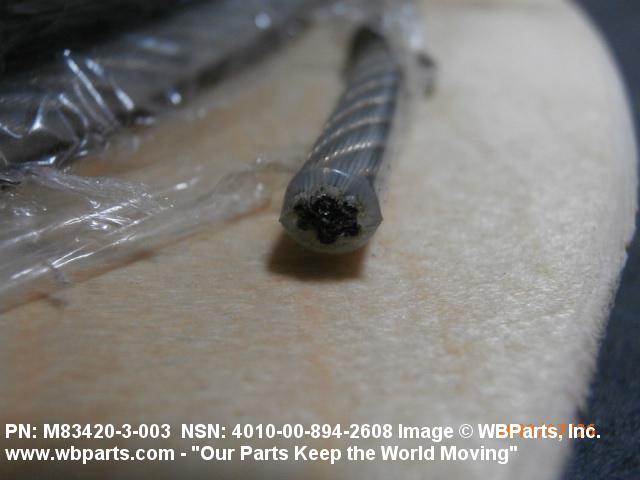

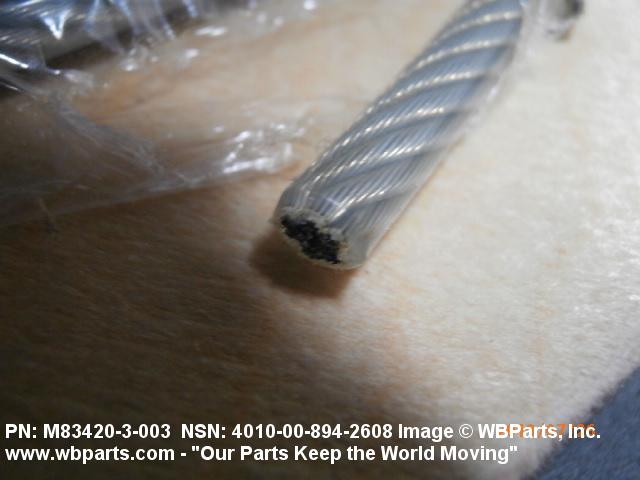

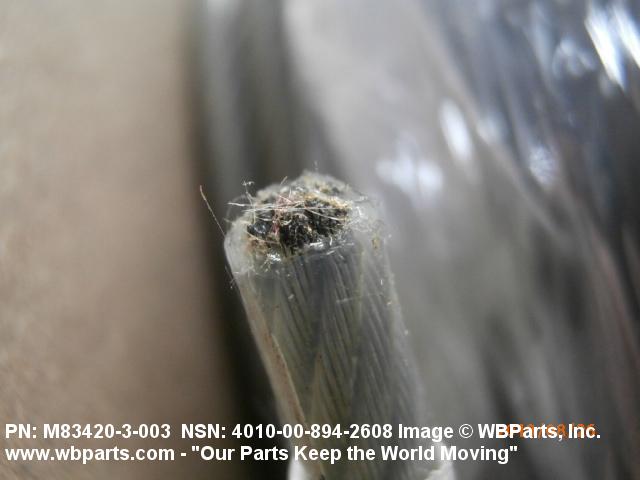

Drawings & Photos | NSN 4010-00-894-2608

Part Number	Request Date	QTY	Origin
4010-00-894-2608	2021-09-251	4004	DIBBS
4010-00-894-2608	2021-08-236	4004	DIBBS
MILW83420	2021-06-159	686	US
MILW83420	2020-10-282	1	Brazil
M834203003	2019-10-280	1000	United States
M834203003	2019-09-269	1000	United States
M834203003	2019-09-267	1000	United States
4010-00-894-2608	2019-07-183	1000	United States
4010-00-894-2608	2019-06-168	1000	US
M834203003	2019-05-150	48	Canada
4010-00-894-2608	2019-04-120	1000	United States
4010-00-894-2608	2018-10-297	200	Canada
4010-00-894-2608	2018-03-74	26795	DIBBS
4010-00-894-2608	2018-03-66	26795	DIBBS
MIL-W-83420	2017-10-297	2
4010-00-894-2608	2017-07-197	6388	DIBBS
4010-00-894-2608	2017-07-183	2000	DIBBS
MILW83420	2017-03-74	1	Brazil
MIL-W-83420	2017-02-53	27
MILW83420	2015-03-72	180	US
4010-00-894-2608	2014-07-182	13276	DIBBS
MILW83420	2011-10-304	1	US
MILW83420	2011-02-33	1	US
MILW83420	2010-06-162	10	US
MILW83420	2009-09-254	10	United States
MILW83420	2009-05-126	100	Turkey
MILW83420	2009-02-34	40	US
MILW83420	2008-11-319	25	India
MILW83420	2008-11-312	150	US
MILW83420	2008-02-32	50	us
MILW83420	2007-12-347	100	US
MILW83420	2007-11-313	1	United Kingdom
MILW83420	2007-11-309	1500	US
MILW83420	2007-08-232	20	EC
MILW83420	2007-08-232	100	EC

Cross Reference | NSN 4010-00-894-2608

Part Number	Cage Code	Manufacturer
114405-4	19564	CRSI INC DELAWARE DIV GENERAL DYNAMICS SATCOM
M83420/3-003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-83420/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-83420	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-83420/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SMC423649-1	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4010-00-894-2608

Compare

Related Products | NSN 4010-00-894-2608

4010-00-894-3581, 4010-00-894-3619, 4010-00-894-5458, 4010-00-895-9160, 4010-00-897-1479

Technical Data | NSN 4010-00-894-2608

Characteristic	Specifications
MATERIAL	PLASTIC POLYAMIDE STRAND COVERING STEEL STRAND
SURFACE TREATMENT	TIN OR ZINC OR TIN AND ZINC WIRE ROPE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-W-83420,COMP A MIL SPEC ALL TREATMENT RESPONSES WIRE ROPE
CORE CONSTRUCTION	INDEPENDENT WIRE ROPE
STYLE DESIGNATOR	A124 7 X 19
LAY METHOD	RIGHT REGULAR ALL LAYERS
PREFABRICATION FORM	PREFORMED
OVERALL LENGTH	1000.000 FEET MINIMUM
DIAMETER	0.125 INCHES NOMINAL ROPE
BREAKING STRENGTH	2000.000 POUNDS MINIMUM
PROOF TEST LOAD	1600.000 POUNDS
NONDEFINITIVE SPEC/STD DATA	2 TYPE AND A COMPOSITION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-83420/3
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83420/3-003

Restrictions/Controls & Freight Information | NSN 4010-00-894-2608

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	107520	WIRE ROPE/STRAND I/S
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	576	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4010-00-894-2608

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 FT : Foot
