NSN 4010-00-892-3996 NAS1201C6A18A, NAS1201C6B18B, 00-892-3996
Product Details | SINGLE LEG CHAIN ASSEMBLY
4010-00-892-3996 An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc..
Part Alternates: NAS1201C6A18A, NAS1201C6B18B, 4010-00-892-3996, 00-892-3996, 4010008923996, 008923996
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1962 | 00-892-3996 | 09765 ( CHAIN ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-00-892-3996
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-00-892-3996
Related Products | NSN 4010-00-892-3996
Technical Data | NSN 4010-00-892-3996
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING ALL ATTACHMENTS STEEL CORROSION RESISTING CHAIN |
| SURFACE TREATMENT | PASSIVATE ALL ATTACHMENTS PASSIVATE CHAIN |

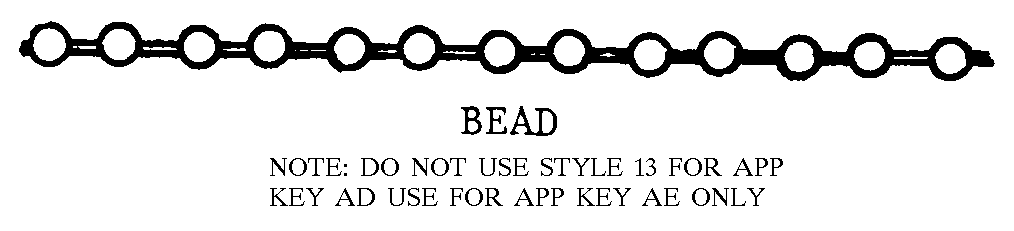

| STYLE DESIGNATOR | C13 BEAD |
| OVERALL LENGTH | 0.729 FEET MINIMUM AND 0.770 FEET MAXIMUM |
| DIAMETER | 0.125 INCHES NOMINAL BEAD |
| QUANTITY PER UNIT OF MEASURE | 72 PER FOOT |
| BREAKING STRENGTH | 45.000 POUNDS MINIMUM |
| FABRICATION METHOD | CAST OR COLD DRAWN OR FORGED OR FORMED |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |

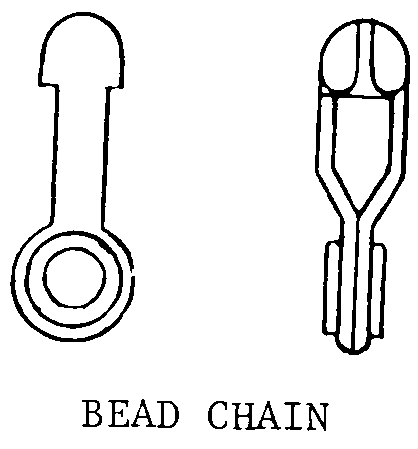

| ATTACHMENT STYLE | D38 BEAD CHAIN TERMINAL ATTACHMENT FIRST END D38 BEAD CHAIN TERMINAL ATTACHMENT SECOND END |
| SPECIFICATION/STANDARD DATA | 80205-NAS1201 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4010-00-892-3996
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-892-3996
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
