NSN 4010-00-815-6536 RRW410, 00-815-6536, 008156536
Product Details | WIRE ROPE
4010-00-815-6536 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Part Alternates: RRW410, 4010-00-815-6536, 00-815-6536, 4010008156536, 008156536
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-815-6536 | 30295 ( ROPE, WIRE ) |
Drawings & Photos | NSN 4010-00-815-6536
Cross Reference | NSN 4010-00-815-6536
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRW410 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-815-6536
Technical Data | NSN 4010-00-815-6536
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL IMPROVED PLOW STRAND |
| CORE CONSTRUCTION | FIBER |

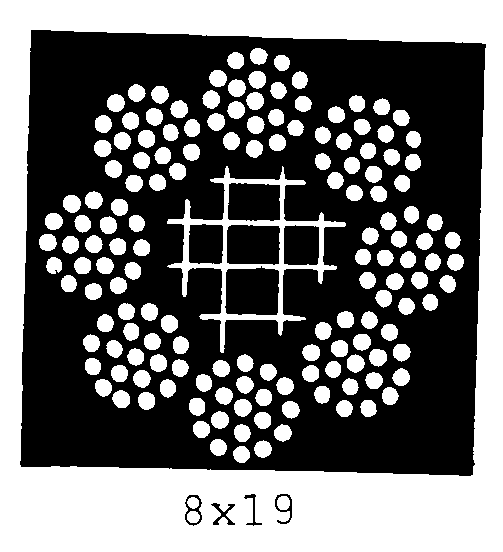

| STYLE DESIGNATOR | A150 8 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| DIAMETER | 0.625 INCHES MINIMUM AND 0.656 INCHES MAXIMUM ROPE |
| BREAKING STRENGTH | 28600.000 POUNDS NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 4 CLASS AND 1 CONSTRUCTION |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RRW410 |
Restrictions/Controls & Freight Information | NSN 4010-00-815-6536
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
